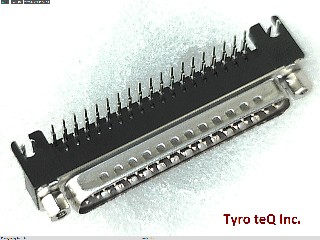

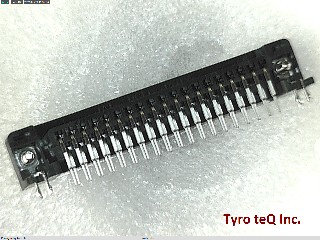

DCLC-J37PAF-10L9E データシート

Name: DCLC-J37PAF-10L9E
Brand: JAE
SKU: 140127309-0000-0000-0000

DCLC-J37PAF-10L9E - JAE の商品詳細ページです。

２営業日以内に回答いたします

DCLC-J37PAF-10L9E の詳細情報

型番	DCLC-J37PAF-10L9E
メーカー	JAE
カテゴリ	角型コネクタ
データシート
Body Breadth	0.496 inch
Body Length	2.728 inch
Contact Finish - Mating	AU
Contact Finish - Termination	TIN
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	13 mohm
Dielectric Withstanding Voltage	1700VAC V
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	4u inch
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.137 inch
Termination Type	SOLDER
Total Number of Contacts	37
