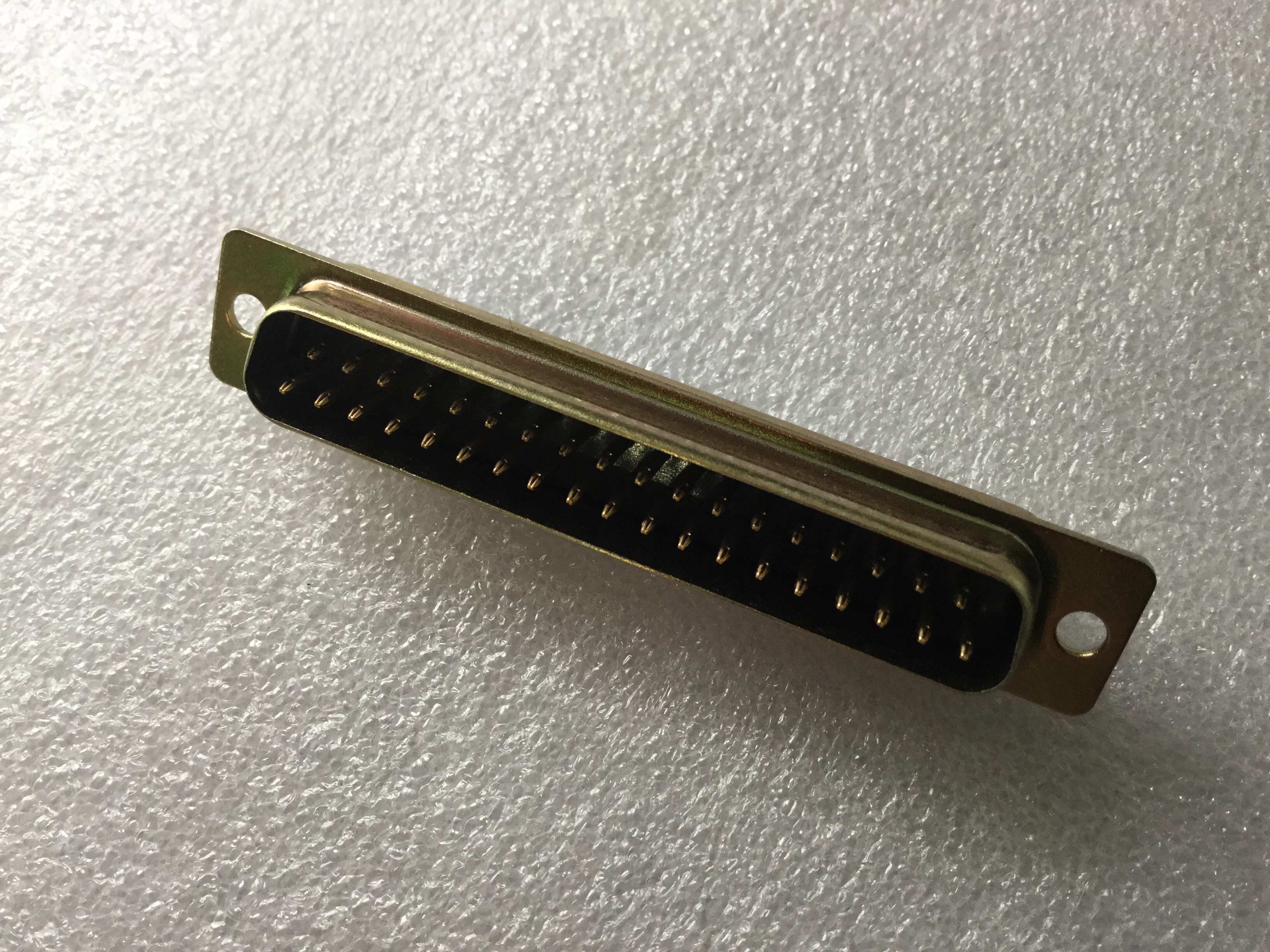

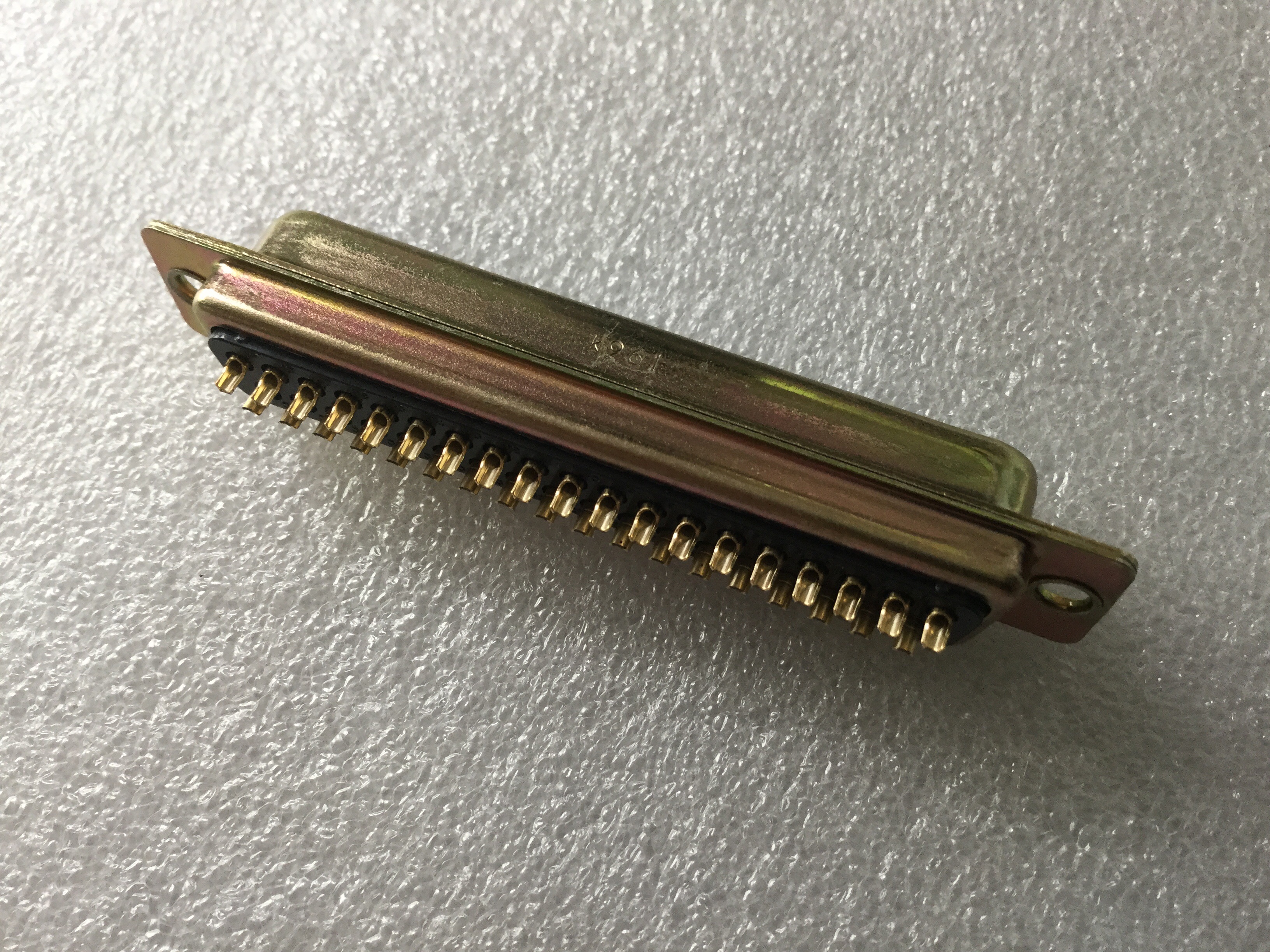

DC-37P-N

Name: DC-37P-N
Brand: JAE
SKU: 140195343-0000-0000-0000

DC-37P-N - JAE の商品詳細ページです。

２営業日以内に回答いたします

DC-37P-N の詳細情報

型番	DC-37P-N
メーカー	JAE
Body Breadth	0.496 inch
Body Depth	0.185 inch
Body Length	2.728 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	STAMPED, PREASSEM
Contact Finish - Mating	AU
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	2.7 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1250VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.892 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	HOLE .112-.124
Mounting Type	BOARD
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	MIL-C-24308
Shell Finish	CHROMATE
Shell Material	STEEL
Shell Size	4/C
Sub Category	D Type Connectors
Terminal Length	0.13 inch
Termination Type	SOLDER
Total Number of Contacts	37
UL Flammability Code	94V-0
Wire Size-Max	20 AWG
Wire Size-Min	20 AWG
Withdrawl Force-Min	2.363 N
