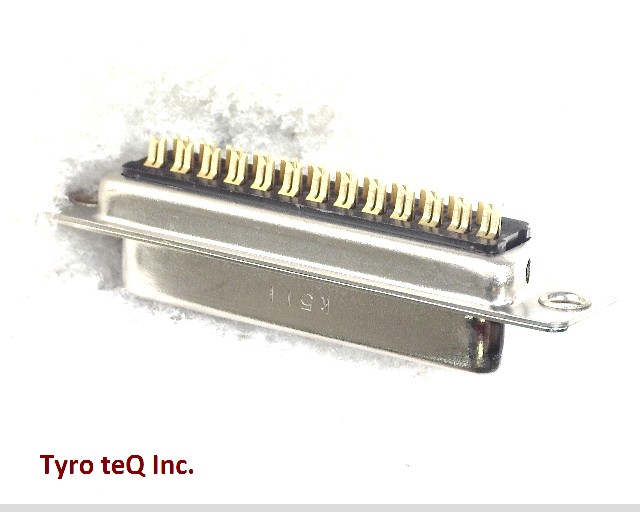

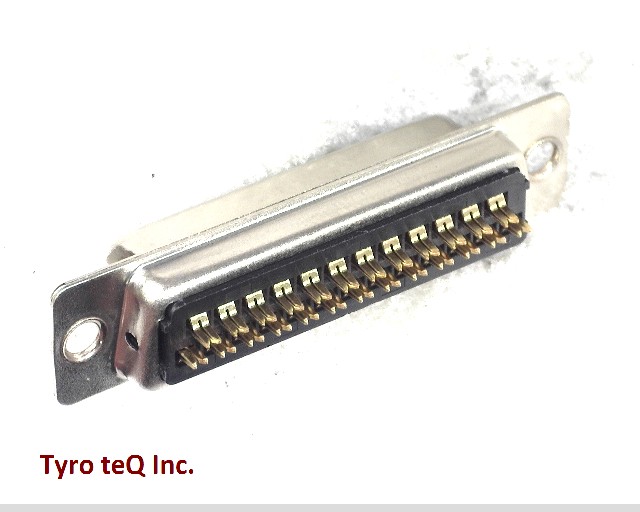

DBSP-JB25SF

Name: DBSP-JB25SF
Brand: JAE
SKU: 140191935-0000-0000-0000

DBSP-JB25SF - JAE の商品詳細ページです。

２営業日以内に回答いたします

DBSP-JB25SF の詳細情報

型番	DBSP-JB25SF
メーカー	JAE
カテゴリ	角型コネクタ
Additional Feature	EMI SHIELDED
Body Breadth	0.496 inch
Body Depth	0.374 inch
Body Length	2.087 inch
Body/Shell Style	SOCKET
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	GOLD
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	BERYLLIUM COPPER
Contact Pattern	STAGGERED
Contact Resistance	30 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	600VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.336 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	HOLE .112-.124
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	MIL-C-24308
Shell Finish	NICKEL
Shell Material	STEEL
Shell Size	3/B
Sub Category	D Type Connectors
Termination Type	IDC
Total Number of Contacts	25
UL Flammability Code	94V-0
Wire Size-Max	26 AWG
Wire Size-Min	28 AWG
Withdrawl Force-Min	2.224 N
