DBLC-J25SAF-13L6 データシート

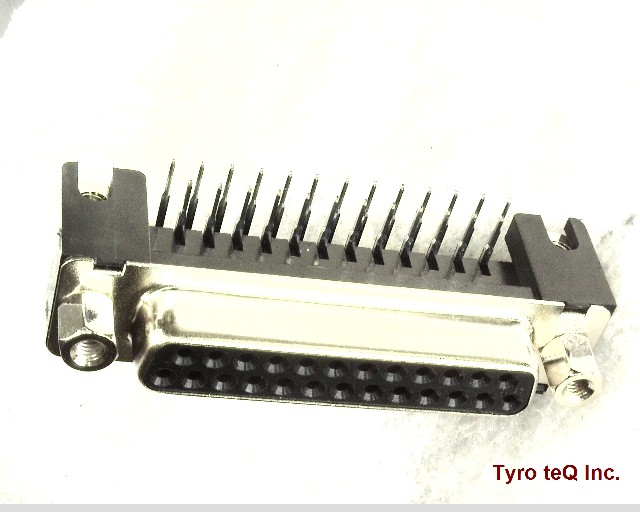

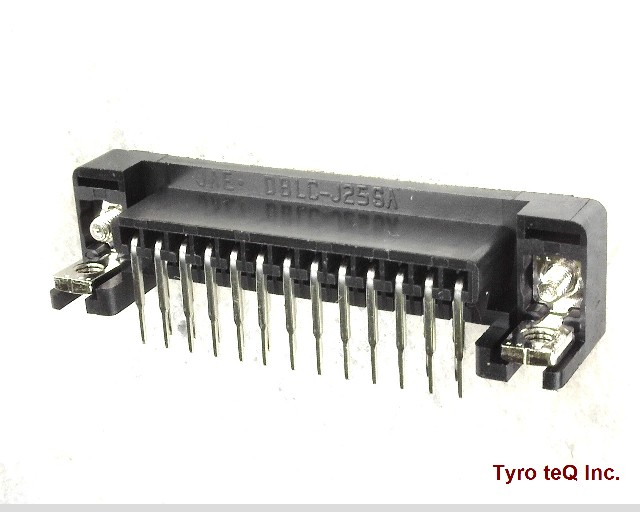

Name: DBLC-J25SAF-13L6
Brand: JAE
SKU: 140089542-0000-0000-0000

DBLC-J25SAF-13L6 - JAE の商品詳細ページです。

２営業日以内に回答いたします

DBLC-J25SAF-13L6 の詳細情報

型番	DBLC-J25SAF-13L6
メーカー	JAE
データシート
Additional Feature	EMI SHIELDED
Body Breadth	0.496 inch
Body Depth	0.496 inch
Body Length	2.086 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	13 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	600VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000 ohm
Insulator Color	BLACK
Insulator Material	POLYESTER
MIL Conformance	NO
Manufacturer Series	D
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	SCREWLOCKS
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.8448 mm
Plating Thickness	4u inch
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Shell Size	3/B
Sub Category	D Type Connectors
Terminal Length	0.137 inch
Terminal Pitch	2.7686 mm
Termination Type	SOLDER
Total Number of Contacts	25
UL Flammability Code	94V-0
