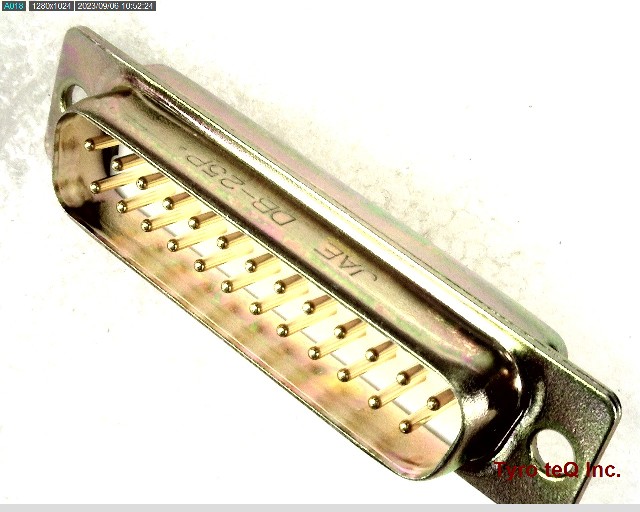

DB-25P-N

Name: DB-25P-N
Brand: JAE
SKU: 140000090-0000-0000-0000

DB-25P-N - JAE の商品詳細ページです。

２営業日以内に回答いたします

DB-25P-N の詳細情報

型番	DB-25P-N
メーカー	JAE
Additional Feature	WITH INSTALLED JACKSCREWS
Body Breadth	0.494 inch
Body Depth	0.185 inch
Body Length	2.087 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	STAMPED, PREASSEM
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	STAGGERED
Contact Resistance	2.7 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	2.78 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.109 inch
Mating Contact Row Spacing	0.112 inch
Mixed Contacts	NO
Mounting Option 1	#4-40
Mounting Option 2	THREADED
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.54 mm
Plating Thickness	5u inch
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	MIL-C-24308
Shell Finish	CHROMATE
Shell Material	STEEL
Shell Size	3/B
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	25
Withdrawl Force-Min	1.946 N
