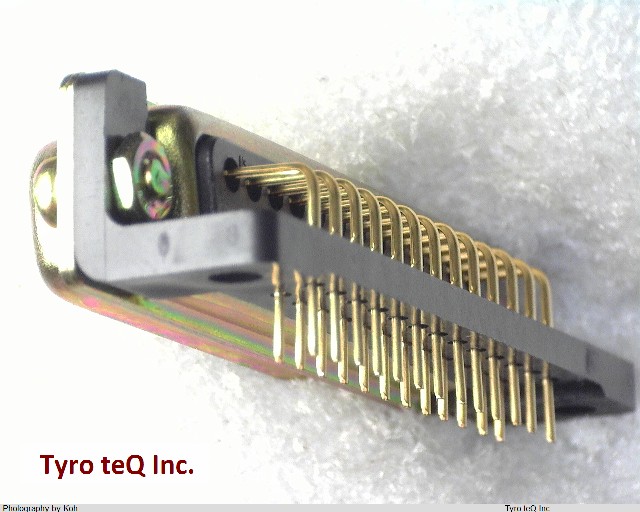

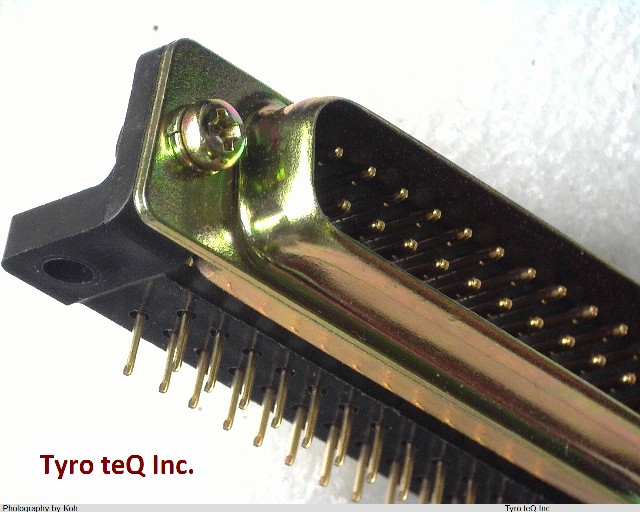

DB-25PA-N

Name: DB-25PA-N
Brand: JAE
SKU: 140200784-0000-0000-0000

DB-25PA-N - JAE の商品詳細ページです。

２営業日以内に回答いたします

DB-25PA-N の詳細情報

型番	DB-25PA-N
メーカー	JAE
Additional Feature	STAMPED CONTACT TYPE
Body Breadth	0.496 inch
Body Depth	0.484 inch
Body Length	2.087 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	4 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1250VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.892 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 2	SCREWLOCKS
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	MIL-C-24308
Shell Finish	CHROMATE
Shell Material	STEEL
Shell Size	3/B
Sub Category	D Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.8448 mm
Termination Type	SOLDER
Total Number of Contacts	25
UL Flammability Code	94V-0
Withdrawl Force-Min	2.363 N
