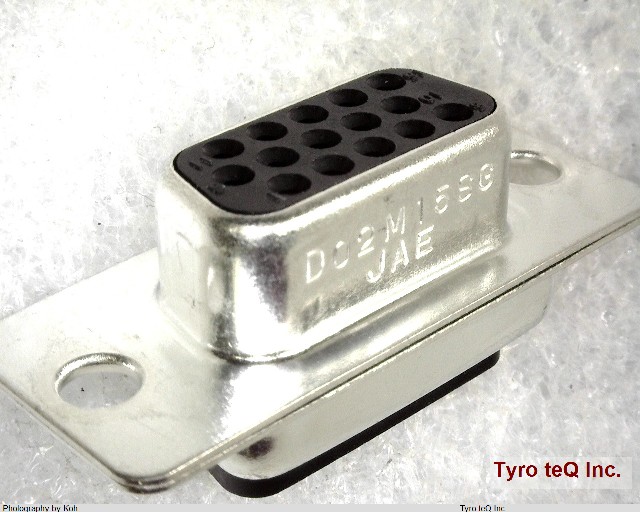

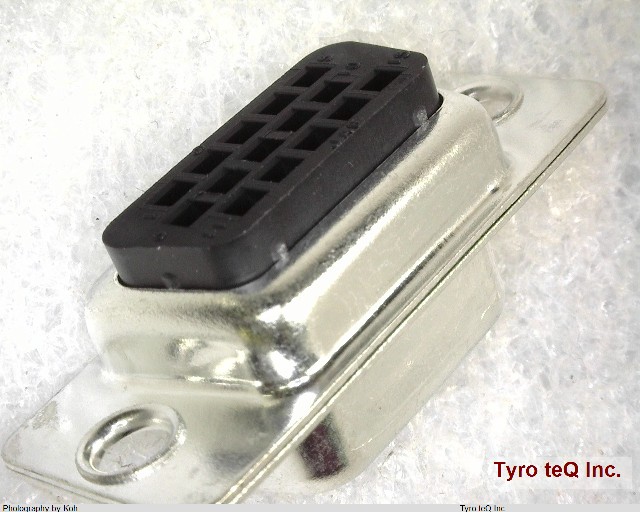

D02-M15SG-N-F0

Name: D02-M15SG-N-F0
Brand: JAE
SKU: 400040519-0000-0000-0000

D02-M15SG-N-F0 - JAE の商品詳細ページです。

２営業日以内に回答いたします

D02-M15SG-N-F0 の詳細情報

型番	D02-M15SG-N-F0
メーカー	JAE
Body Breadth	1.496 inch
Body Depth	0.271 inch
Body Length	1.212 inch
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1250VAC V
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.08 inch
Mating Contact Row Spacing	0.078 inch
Mixed Contacts	NO
Mounting Option 1	HOLE .112-.124
Mounting Option 2	LOCKING
Number of Rows Loaded	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	TIN
Shell Material	STEEL
Shell Size	1/E
Sub Category	D Type Connectors
Total Number of Contacts	15
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	28 AWG
