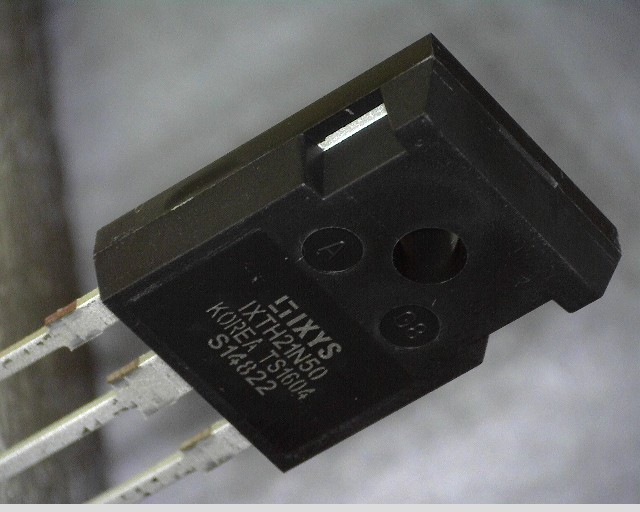

IXTH21N50 データシート

Name: IXTH21N50
Brand: IXYS
SKU: 190051994-0000-0000-0000

IXTH21N50 - IXYS の商品詳細ページです。

２営業日以内に回答いたします

IXTH21N50 の詳細情報

型番	IXTH21N50
メーカー	IXYS
データシート
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	1.5 mJ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	500 V
Drain Current-Max (Abs) (ID)	21 A
Drain Current-Max (ID)	21 A
Drain-source On Resistance-Max	0.25 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-247AD
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	300 W
Power Dissipation-Max (Abs)	250 W
Pulsed Drain Current-Max (IDM)	84 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
