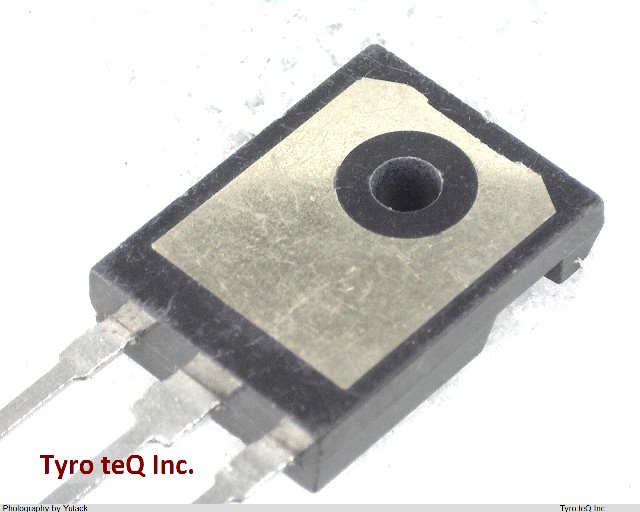

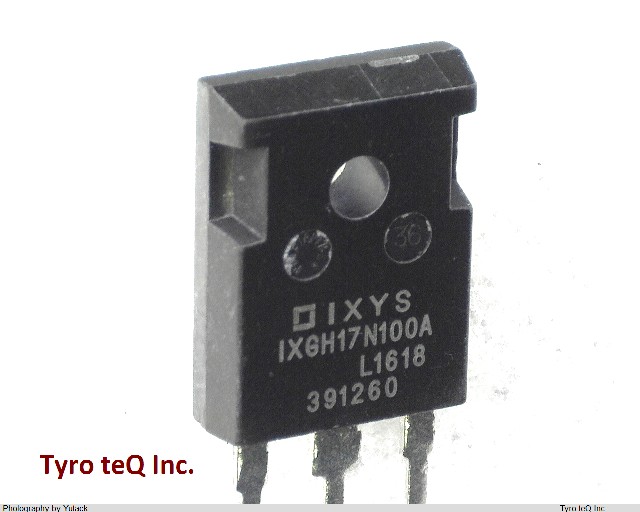

IXGH17N100A データシート

Name: IXGH17N100A
Brand: IXYS
SKU: 190081026-0000-0000-0000

IXGH17N100A - IXYS の商品詳細ページです。

２営業日以内に回答いたします

IXGH17N100A の詳細情報

型番	IXGH17N100A
メーカー	IXYS
データシート
Additional Feature	HIGH SPEED
Case Connection	COLLECTOR
Collector Current-Max (IC)	34 A
Collector-emitter Voltage-Max	1000 V
Configuration	SINGLE
Gate-emitter Thr Voltage-Max	5 V
Gate-emitter Voltage-Max	20 V
JEDEC-95 Code	TO-247AD
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	150 W
Power Dissipation-Max (Abs)	150 W
Qualification Status	Not Qualified
Sub Category	Insulated Gate BIP Transistors
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	1450 ns
Turn-on Time-Nom (ton)	300 ns
VCEsat-Max	4 V
