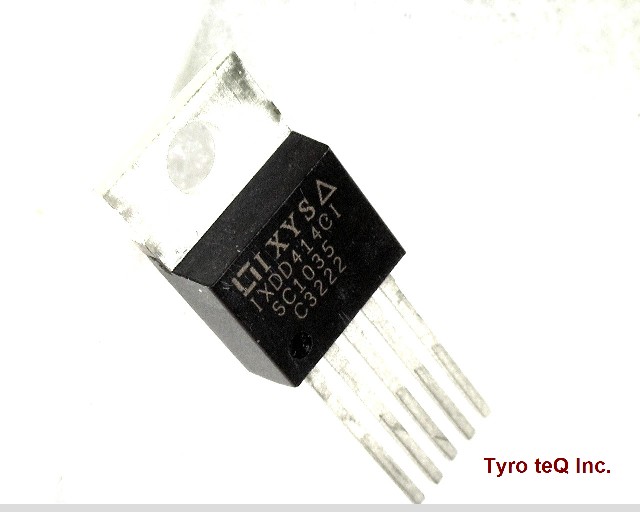

IXDD414CI

Name: IXDD414CI
Brand: IXYS
SKU: 190106332-0000-0000-0000

IXDD414CI - IXYS の商品詳細ページです。

２営業日以内に回答いたします

IXDD414CI の詳細情報

型番	IXDD414CI
メーカー	IXYS
Built-in Protections	TRANSIENT; OVER CURRENT; OVER VOLTAGE
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PSFM-T5
JESD-609 Code	e3
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Current Flow Direction	SOURCE AND SINK
Output Peak Current Limit-Nom	14 A
Package Body Material	PLASTIC/EPOXY
Package Code	TO-220
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Supply Voltage-Max	35 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	18 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	35
Turn-off Time	34 us
Turn-on Time	33 us
