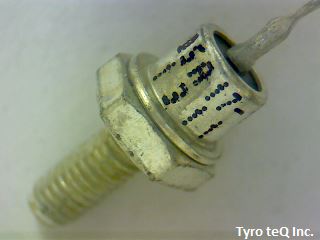

DSA17-18A
1
-
- 個
２営業日以内に回答いたします
DSA17-18A の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DSA17-18A |
|---|---|
| メーカー | IXYS |
| Application | GENERAL PURPOSE |
| Breakdown Voltage-Min | 1950 V |
| Case Connection | ANODE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.36 V |
| JEDEC-95 Code | DO-203AA |
| JESD-30 Code | O-MUPM-D1 |
| Non-rep Pk Forward Current-Max | 320 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 1 |
| Operating Temperature-Max | 180 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Current-Max | 25 A |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | POST/STUD MOUNT Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 1800 V |
| Reverse Current-Max | 4000 uA |
| Reverse Test Voltage | 1800 V |
| Sub Category | Rectifier Diodes |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Form | SOLDER LUG |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| 会社名称 | IXYS Corporation |
|---|---|
| 設立 | 1983 |
| 所在地 | 1590 Buckeye Drive Milpitas, CA 95035 |
| URL | http://www.ixys.com/ |
