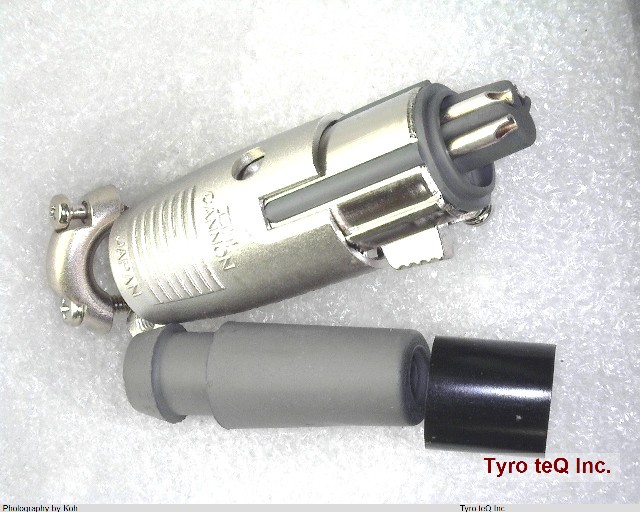

XLR4-11C データシート

Name: XLR4-11C
Brand: ITT CANON
SKU: 340018728-0000-0000-0000

XLR4-11C - ITT CANON の商品詳細ページです。

２営業日以内に回答いたします

XLR4-11C の詳細情報

型番	XLR4-11C
メーカー	ITT CANON
データシート
Body Depth	3.031 inch
Body Diameter	0.748 inch
Body/Shell Style	PLUG
Connector Type	GENERAL PURPOSE AUDIO
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Resistance	5 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1400VAC V
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
MIL Conformance	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Poles	4
Number of Ports	1
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	10 A
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	ALUMINUM ALLOY
Sub Category	Audio/RCA Connector
Termination Type	CRIMP
