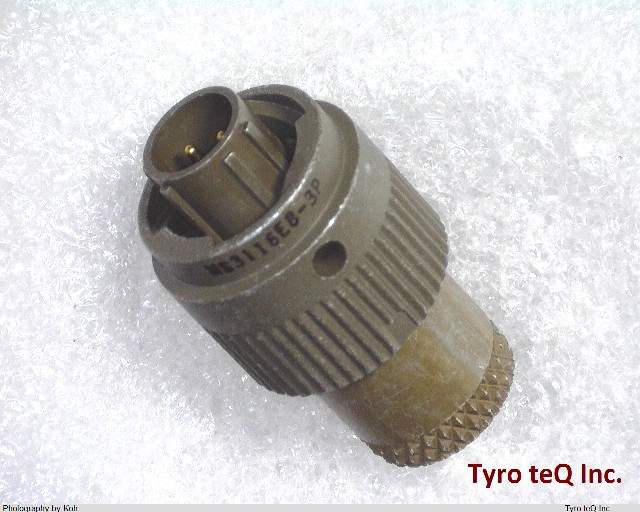

MS3116E8-3P

Name: MS3116E8-3P
Brand: ITT CANON
SKU: 230761725-0000-0000-0000

MS3116E8-3P - ITT CANON の商品詳細ページです。

２営業日以内に回答いたします

MS3116E8-3P の詳細情報

型番	MS3116E8-3P
メーカー	ITT CANON
Additional Feature	STANDARD: MIL-DTL-26482
Backshell Type	SOLID
Body/Shell Style	PLUG
Connector Type	MIL SERIES CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Quantities	3
Contact Sizes	20
Coupling Type	BAYONET
DIN Conformance	NO
Degrees of Rotation	0
Description	PLUG FOR USE WITH STRAIGHT BACKSHELL
Empty Shell	NO
Environmental Characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter Feature	NO
IEC Conformance	NO
Insulator Material	NEOPRENE
MIL Conformance	YES
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	CABLE
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization	N
Shell Finish	CADMIUM
Shell Material	ALUMINUM ALLOY
Shell Size	8
Termination Type	SOLDER
Total Number of Contacts	3
Unique Insert Number	8-3
