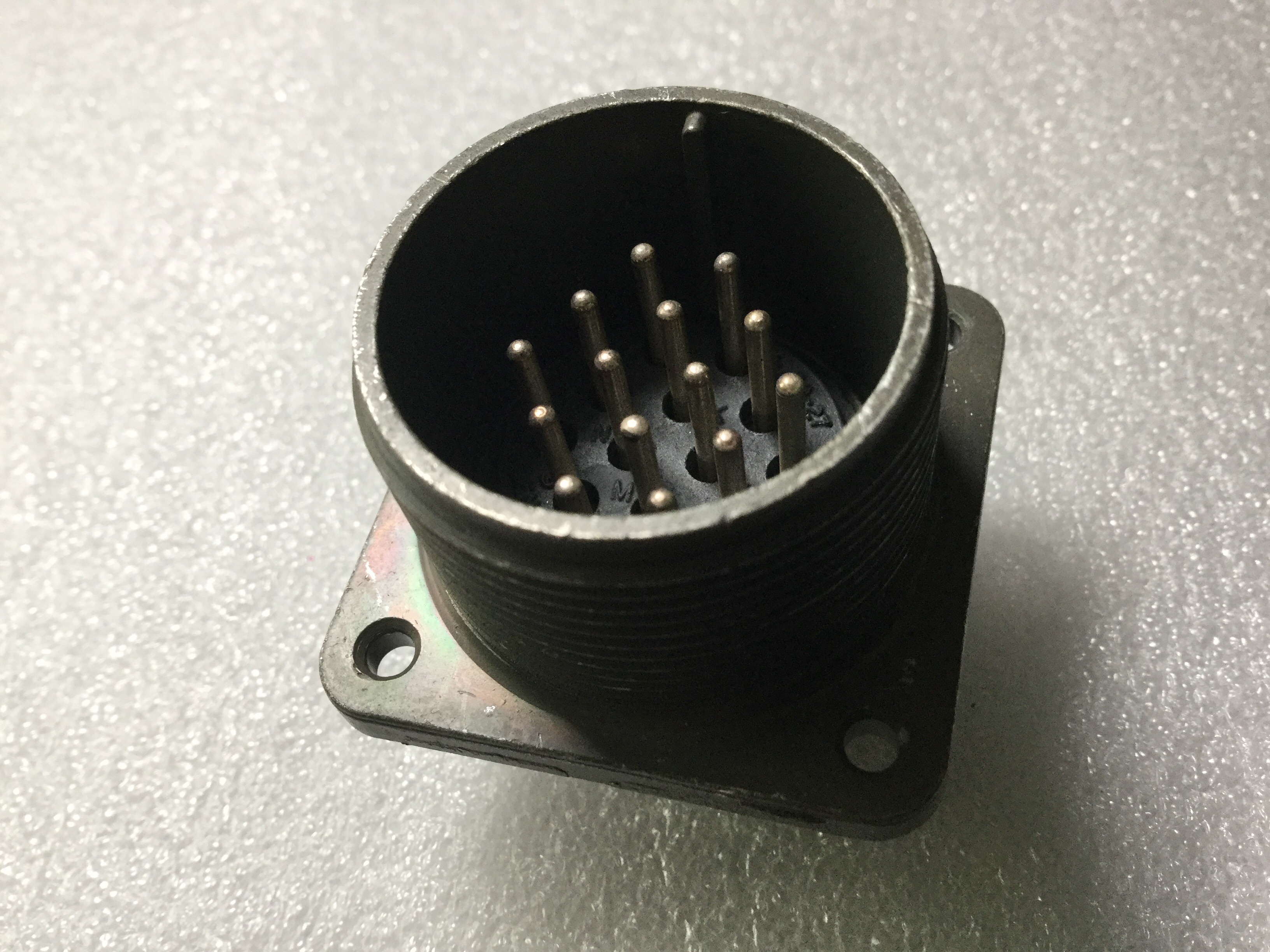

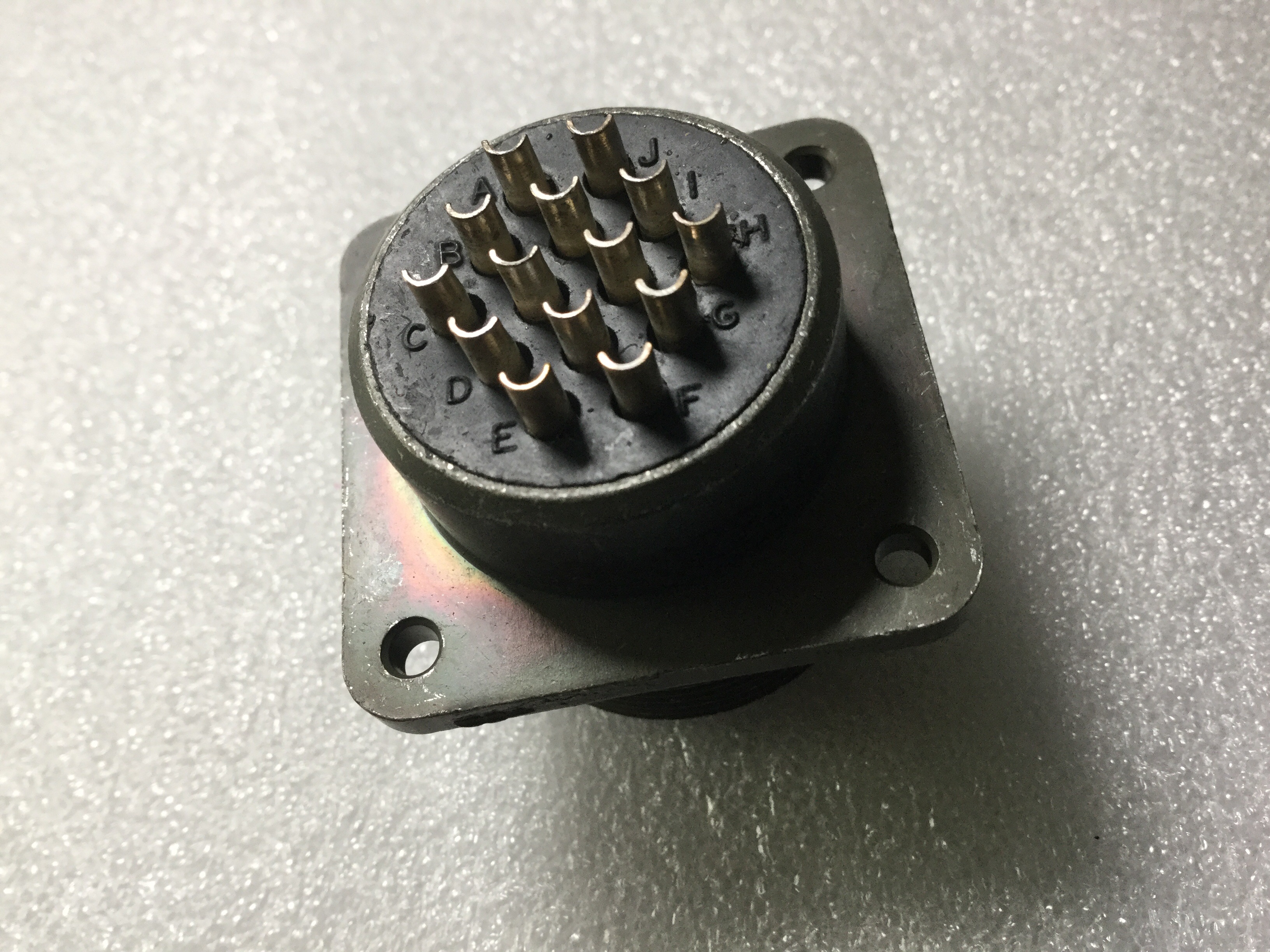

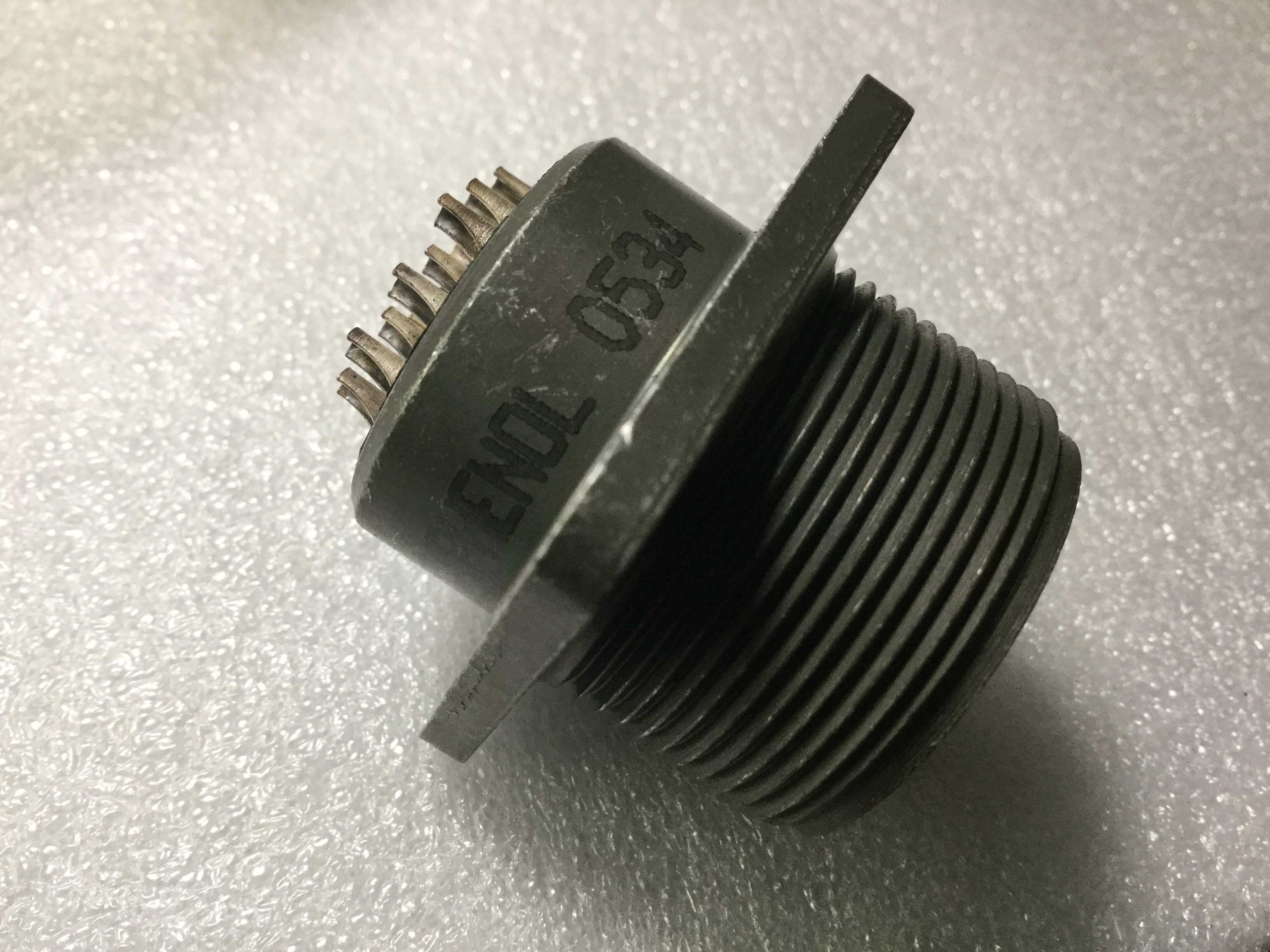

MS3102R20-27P

Name: MS3102R20-27P
Brand: ITT CANON
SKU: 230761788-0000-0000-0000

MS3102R20-27P - ITT CANON の商品詳細ページです。

２営業日以内に回答いたします

MS3102R20-27P の詳細情報

型番	MS3102R20-27P
メーカー	ITT CANON
Additional Feature	STANDARD: MIL-C-5015
Backshell Type	SOLID
Body/Shell Style	RECEPTACLE
Connector Type	MIL SERIES CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin/Lead (Sn/Pb)
Contact Gender	MALE
Contact Material	BRASS/COPPER ALLOY
Contact Quantities	14
Contact Sizes	16
Contact Type	SOLDER CUP
Coupling Type	THREADED
DIN Conformance	NO
Degrees of Rotation	0
Description	90 DEG. CABLE CONNECTOR
Empty Shell	NO
Environmental Characteristics	ENVIRONMENT RESISTANT
Filter Feature	NO
IEC Conformance	NO
JESD-609 Code	e0
MIL Conformance	YES
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	CABLE AND PANEL
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization	N
Shell Finish	CADMIUM
Shell Material	ALUMINIUM ALLOY
Shell Size	20
Termination Type	CRIMP
Total Number of Contacts	14
Unique Insert Number	20-27
