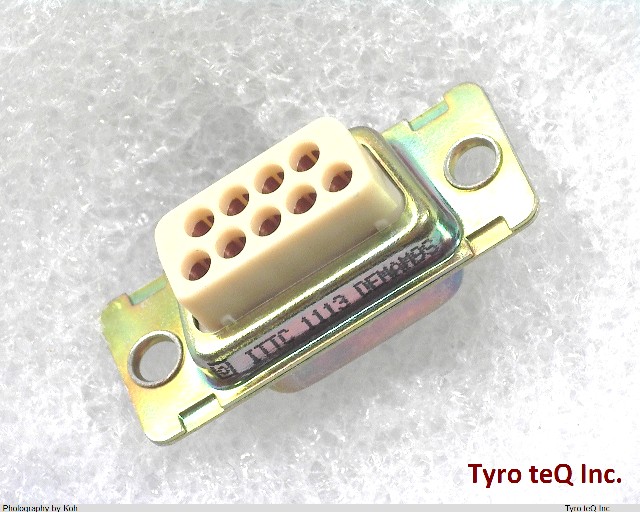

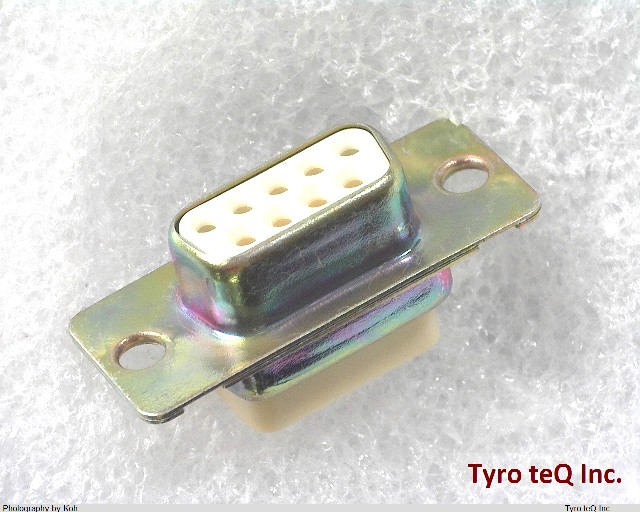

DEMAM9S
1
-
- 個
２営業日以内に回答いたします
DEMAM9S の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DEMAM9S |
|---|---|
| メーカー | ITT CANON |

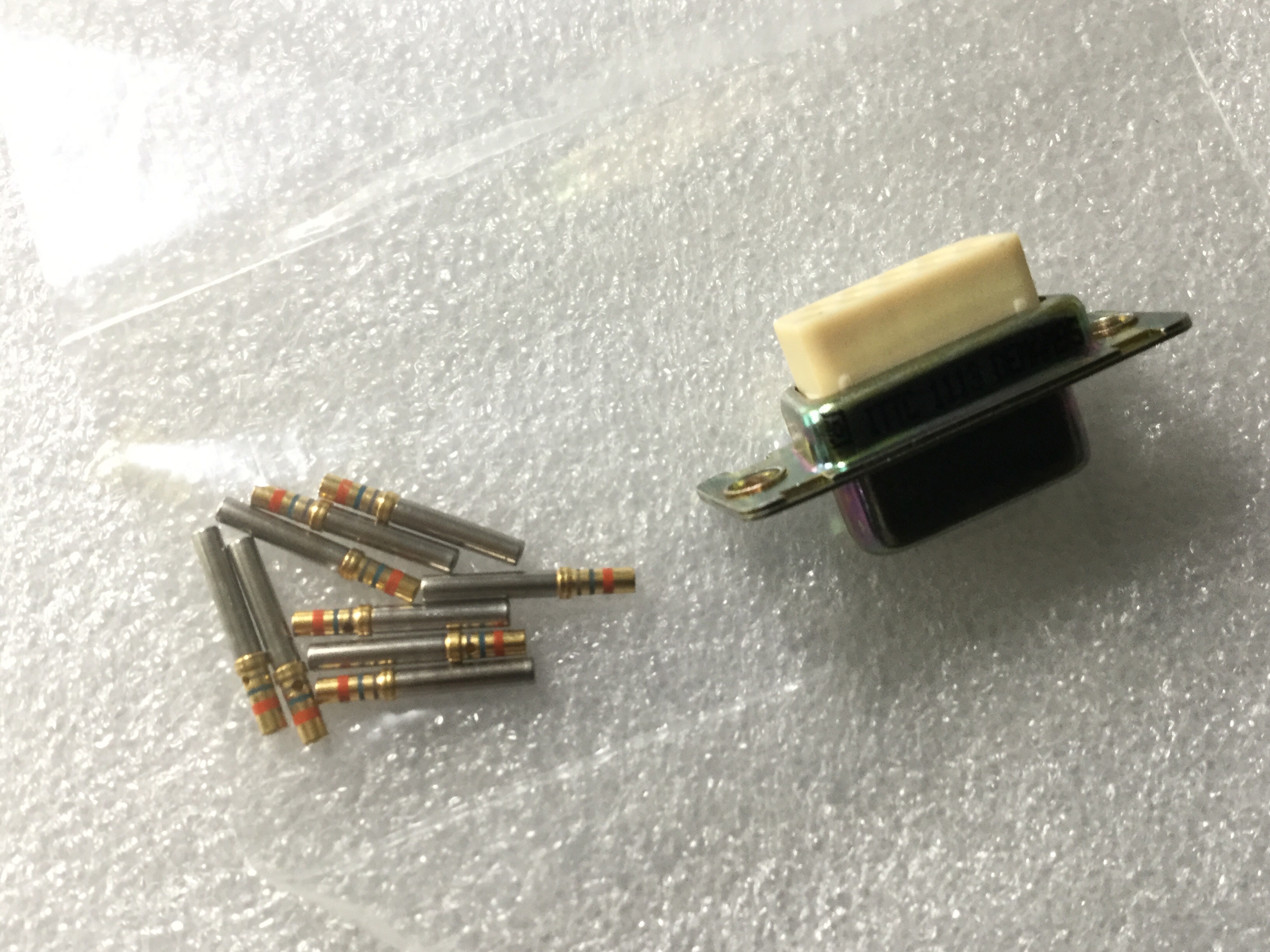

| Additional Feature | COMPATIBLE CONTACTS: 031-1007-000; 031-1007-001; 031-1007-004 |
| Body Breadth | 0.494 inch |
| Body Depth | 0.186 inch |
| Body Length | 1.213 inch |
| Body/Shell Style | PLUG |
| Connector Type | D SUBMINIATURE CONNECTOR |
| Contact Design | PREASSEM CONN |
| Contact Finish - Mating | AU ON CU |
| Contact Finish - Termination | GOLD |
| Contact Gender | FEMALE |
| Contact Material | COPPER ALLOY |
| Contact Pattern | STAGGERED |
| Contact Resistance | 55 mohm |
| Contact Style | RND PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 1500VAC V |
| Empty Shell | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulator Color | GREEN |
| Insulator Material | DIALLYL PHTHALATE |
| JESD-609 Code | e4 |
| MIL Conformance | NO |
| Manufacturer Series | DEM |
| Mating Contact Pitch | 0.108 inch |
| Mating Contact Row Spacing | 0.112 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | HOLE .112-.124 |
| Mounting Style | STRAIGHT |
| Mounting Type | CABLE |
| Number Of Connectors | ONE |
| Number of Rows Loaded | 2 |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -65 Cel |
| Option | GENERAL PURPOSE |
| Plating Thickness | 50u inch |
| Rated Current (Signal) | 5 A |
| Reliability | MIL-C-24308 |
| Shell Finish | CADMIUM/YELLOW CHROMATE |
| Shell Material | STEEL |
| Shell Size | 1/E |
| Sub Category | D Type Connectors |
| Termination Type | CRIMP |
| Total Number of Contacts | 9 |
| Wire Size-Max | 18 AWG |
| Wire Size-Min | 30 AWG |
| 会社名称 | ITT Corporation. |
|---|---|
| 設立 | 1920 |
| URL | http://www.ittcannon.com/ |
DEMAM9Sのレビュー
DEMAM9S のご注文について
050-3612-7934
045-263-9989
DEMAM9S - ITT CANON の商品詳細ページです。
