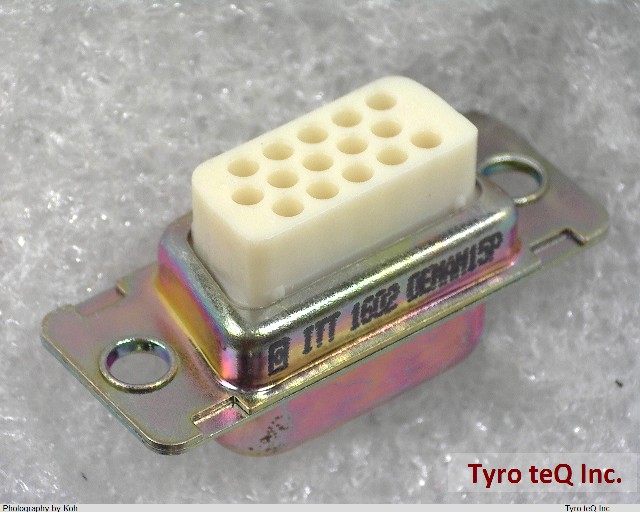

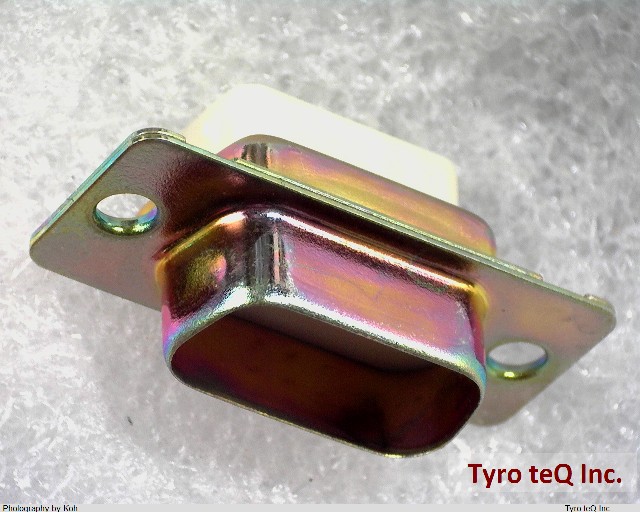

DEMAM15P

Name: DEMAM15P
Brand: ITT CANON
SKU: 140202088-0000-0000-0000

DEMAM15P - ITT CANON の商品詳細ページです。

２営業日以内に回答いたします

DEMAM15P の詳細情報

型番	DEMAM15P
メーカー	ITT CANON
Body Breadth	0.494 inch
Body Length	1.541 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	STRIP OR LOOSE
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	STAGGERED
Contact Resistance	2.7 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1250VAC V
Insertion Force-Max	3.336 N
Insulation Resistance	5000000000 ohm
Insulator Color	GREEN
Insulator Material	GLASS FILLED DIALLYL PHTHALATE
MIL Conformance	YES
Manufacturer Series	3
Mating Contact Pitch	0.109 inch
Mating Contact Row Spacing	0.112 inch
Mounting Option 1	HOLE .112-.124
Mounting Option 2	NON-THREADED
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
Plating Thickness	20u inch
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	MIL-C-24308
Shell Finish	TIN
Shell Material	STEEL
Sub Category	D Type Connectors
Termination Type	CRIMP
Total Number of Contacts	15
Withdrawl Force-Min	.1946 N
