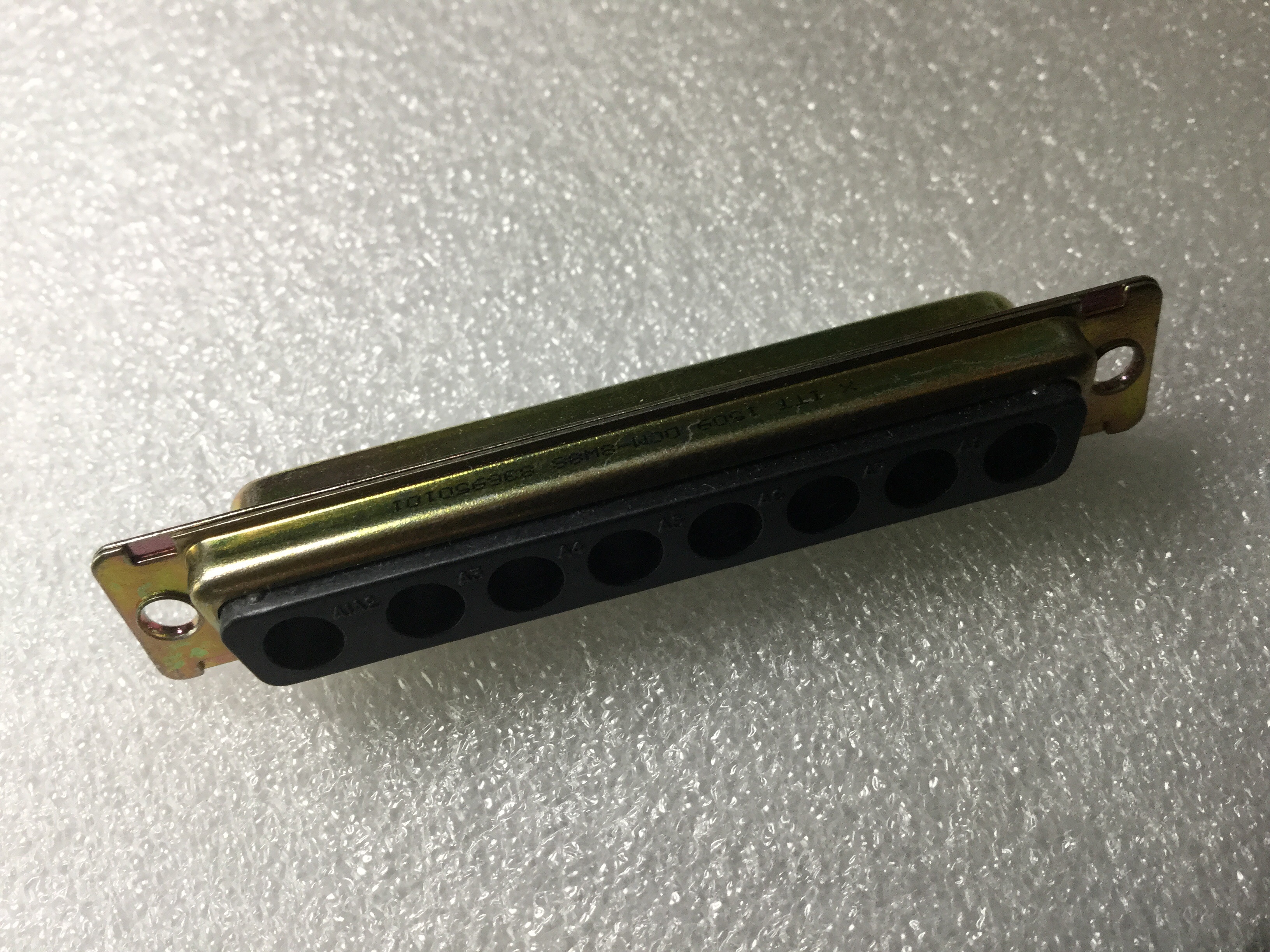

DCM-8W8S
1
-
- 個
２営業日以内に回答いたします
DCM-8W8S の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DCM-8W8S |
|---|---|
| メーカー | ITT CANON |
| Additional Feature | APPLICABLE CABLES:RG-196/U; RG-1788/U; RG-187/U |
| Body Breadth | 0.421 inch |
| Body Depth | 0.224 inch |
| Body Length | 2.714 inch |
| Body/Shell Style | PLUG |
| Connector Type | D SUBMINIATURE CONNECTOR |
| Contact Arrangement | S0C8 |
| Contact Finish - Mating | AU |
| Contact Finish - Termination | GOLD (30) |
| Contact Gender | FEMALE |
| Contact Material | BRASS |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 2.7 mohm |
| Contact Style | COAX |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 500VAC V |
| Durability | 50 Cycles |
| Empty Shell | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max | 3.336 N |
| Insulation Resistance | 5000000000 ohm |
| Insulator Color | BLACK |
| Insulator Material | DIALLYL PHTHALATE |
| JESD-609 Code | e4 |
| MIL Conformance | NO |
| Manufacturer Series | 1 |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | #4-40 |
| Mounting Option 2 | LOCKING |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number of Rows Loaded | 1 |
| Operating Temperature-Max | 120 Cel |
| Operating Temperature-Min | -65 Cel |
| Option | GENERAL PURPOSE |
| Plating Thickness | 20u inch |
| Rated Current (Signal) | 5 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Shell Finish | CADMIUM |
| Shell Material | BRASS |
| Shell Size | 4/C |
| Sub Category | D Type Connectors |
| Termination Type | CRIMP |
| Total Number of Contacts | 8 |
| UL Flammability Code | 94V-0 |
| Withdrawl Force-Min | .1946 N |
| 会社名称 | ITT Corporation. |
|---|---|
| 設立 | 1920 |
| URL | http://www.ittcannon.com/ |
