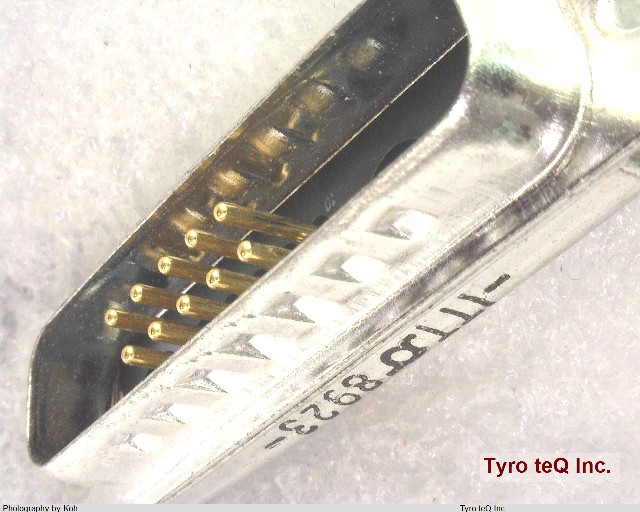

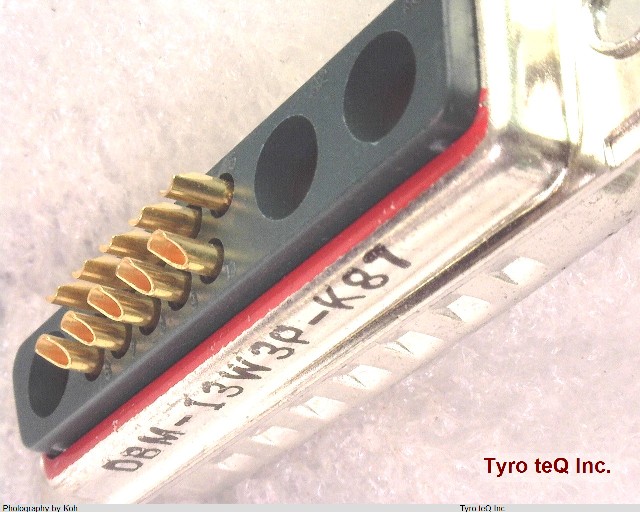

DBM-13W3P

Name: DBM-13W3P
Brand: ITT CANON
SKU: 400047232-0000-0000-0000

DBM-13W3P - ITT CANON の商品詳細ページです。

２営業日以内に回答いたします

DBM-13W3P の詳細情報

型番	DBM-13W3P
メーカー	ITT CANON
Additional Feature	APPLICABLE CABLES:RG-196/U; RG-1788/U; RG-187/U
Body Breadth	0.494 inch
Body Depth	0.157 inch
Body Length	2.073 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Arrangement	S10C3
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	GOLD (30)
Contact Gender	FEMALE
Contact Material	BRASS
Contact Resistance	2.7 mohm
Contact Style	HYBRID
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	50 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.336 N
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e0
MIL Conformance	NO
Manufacturer Series	1
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	#4-40
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
Plating Thickness	20u inch
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	CADMIUM
Shell Material	BRASS
Shell Size	3/B
Sub Category	D Type Connectors
Terminal Length	0.083 inch
Termination Type	CRIMP
Total Number of Contacts	10
UL Flammability Code	94V-0
Withdrawl Force-Min	.1946 N
