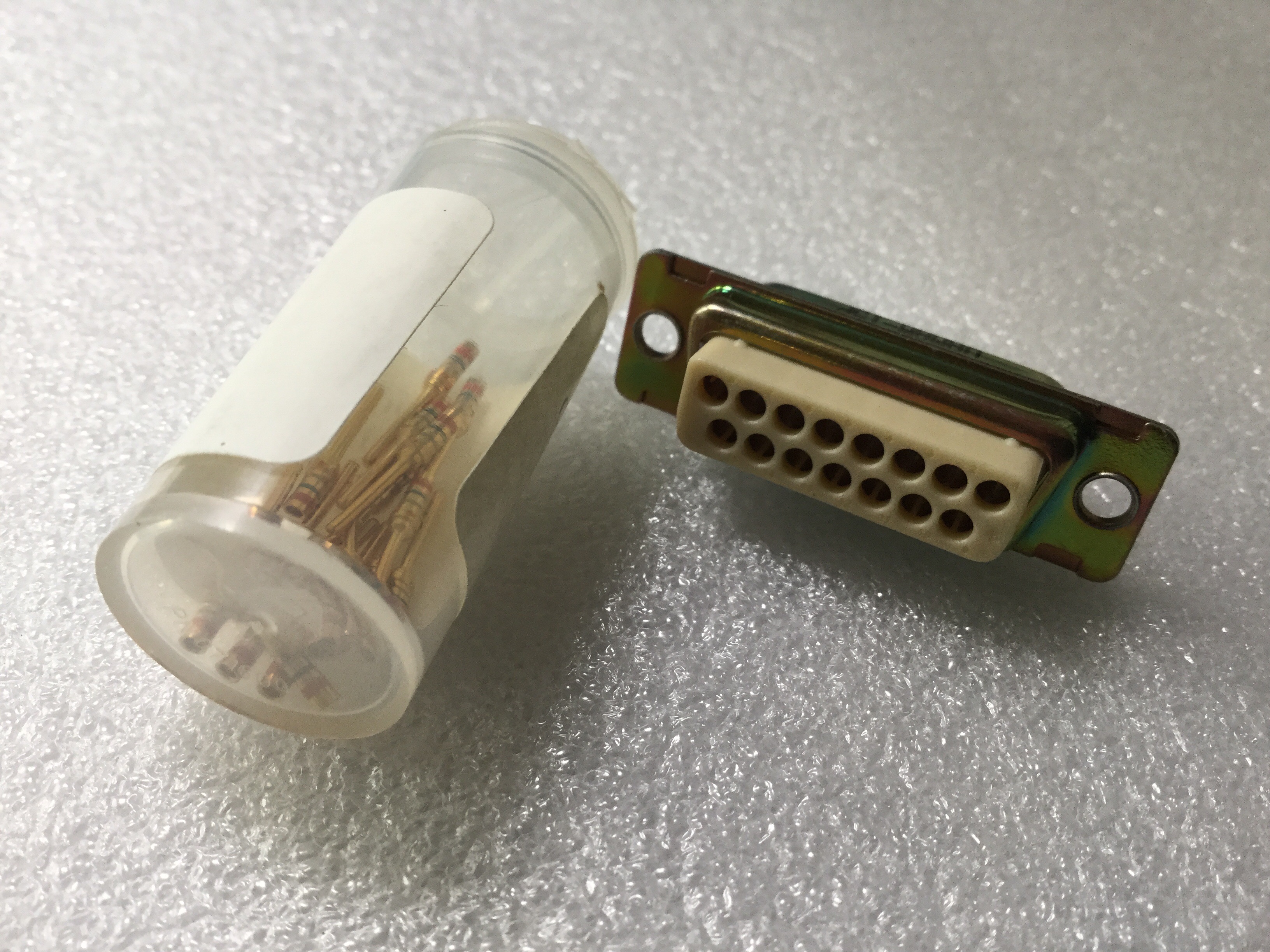

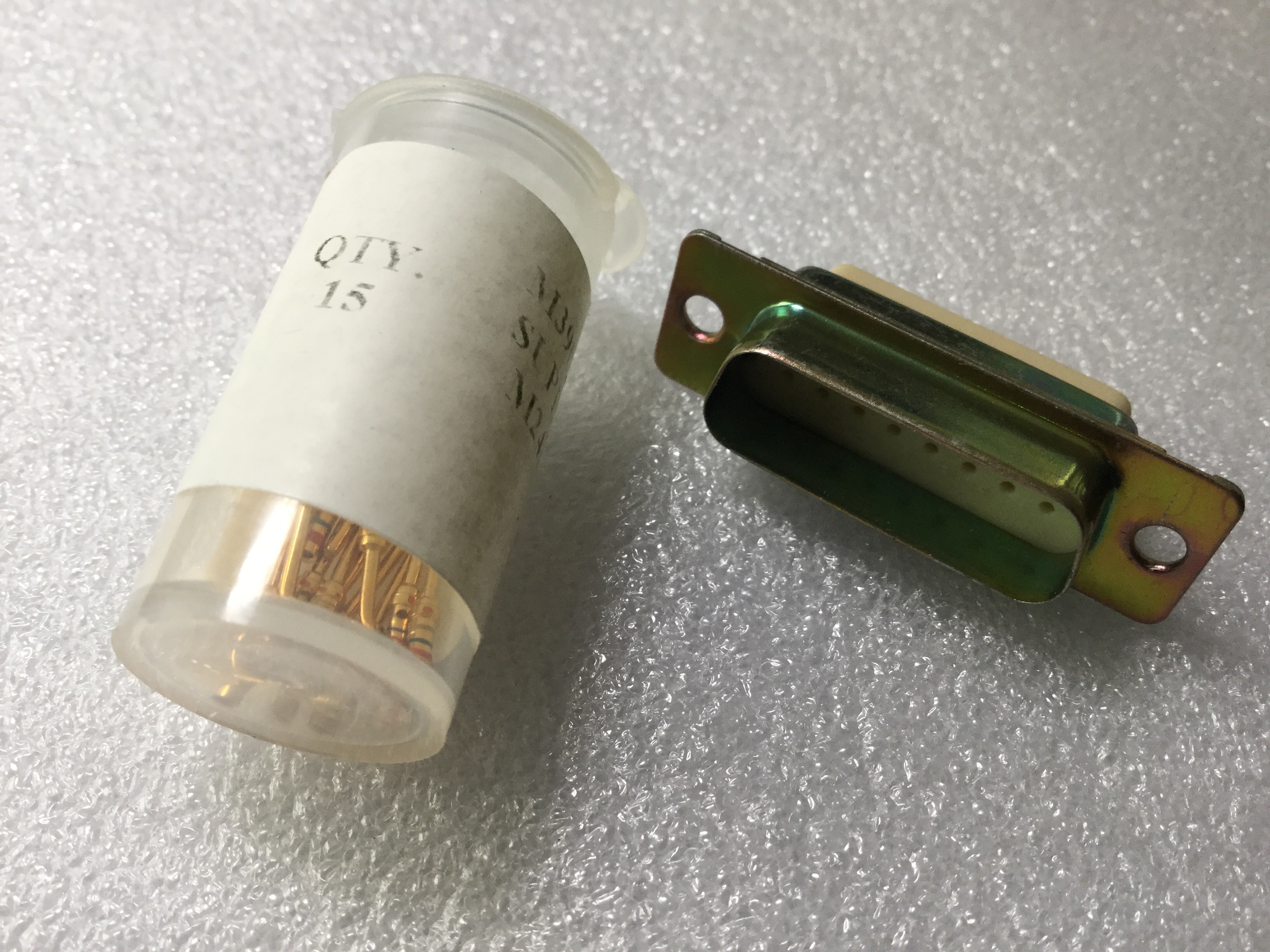

DAMAM15P

Name: DAMAM15P
Brand: ITT CANON
SKU: 140202075-0000-0000-0000

DAMAM15P - ITT CANON の商品詳細ページです。

２営業日以内に回答いたします

DAMAM15P の詳細情報

型番	DAMAM15P
メーカー	ITT CANON
Additional Feature	STANDARD: MIL-C-24308, COMPATIBLE CONTACT: 330-5291-037
Body Breadth	0.422 inch
Body Depth	0.159 inch
Body Length	1.541 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	GOLD OVER NICKEL
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	10 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Color	BLACK
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	DAM
Mating Contact Pitch	0.108 inch
Mating Contact Row Spacing	0.112 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	HOLE .12
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-65 Cel
Option	GENERAL PURPOSE
Plating Thickness	50u inch
Rated Current (Signal)	5 A
Reference Standard	MIL, UL
Reliability	COMMERCIAL
Shell Finish	CADMIUM
Shell Material	CARBON STEEL
Shell Size	2/A
Sub Category	D Type Connectors
Termination Type	CRIMP
Total Number of Contacts	15
UL Flammability Code	94V-0
Wire Size-Max	18 AWG
Wire Size-Min	28 AWG
