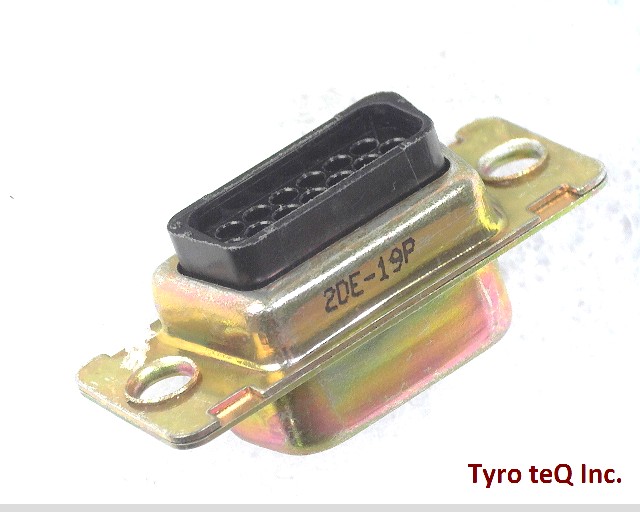

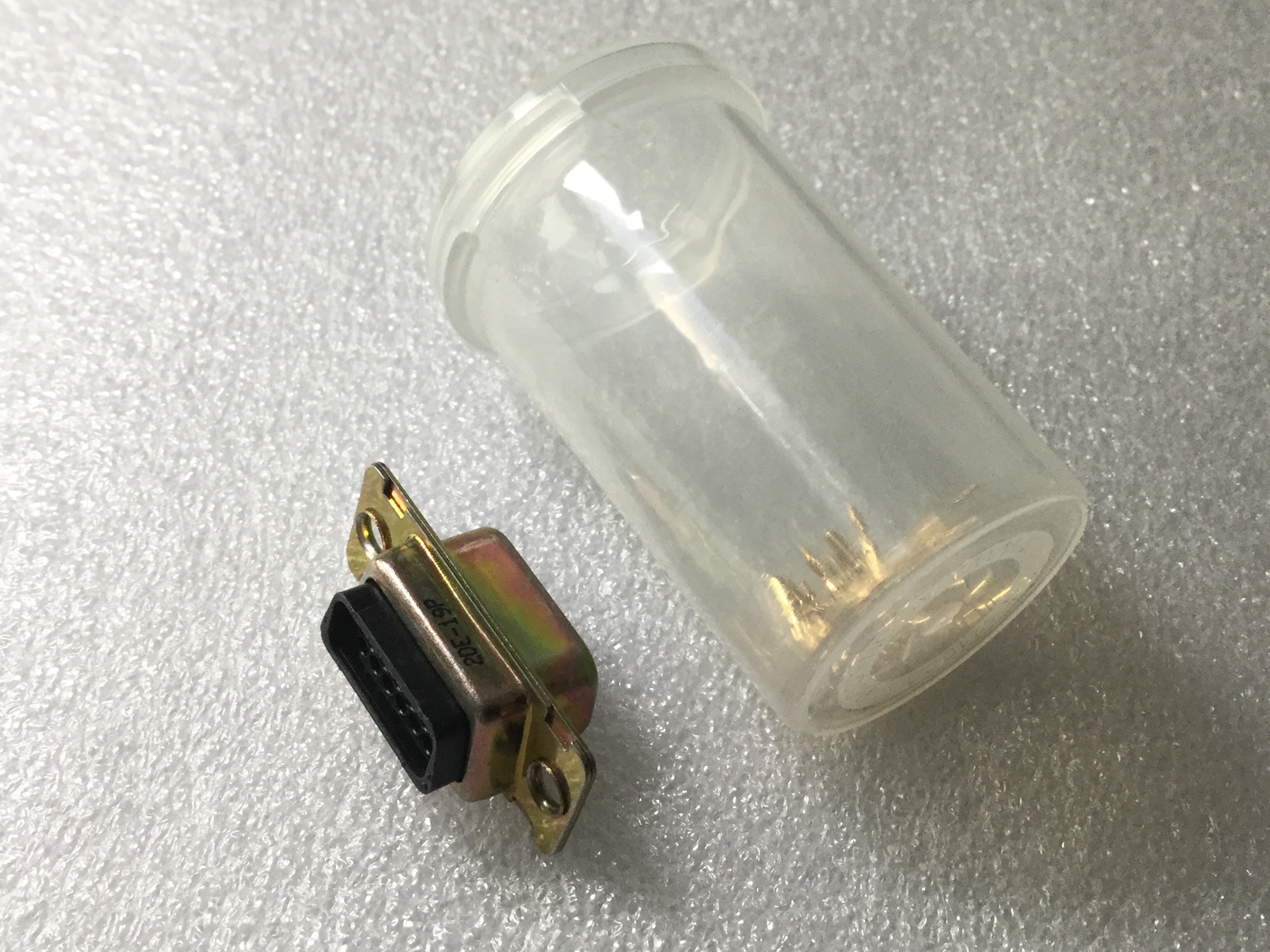

2DE-19P
1
-
- 個
２営業日以内に回答いたします
2DE-19P の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 2DE-19P |
|---|---|
| メーカー | ITT CANON |
| Additional Feature | CENTIPIN |
| Body Breadth | 0.494 inch |
| Body Depth | 0.319 inch |
| Body Length | 1.213 inch |
| Body/Shell Style | PLUG |
| Connector Type | D SUBMINIATURE CONNECTOR |
| Contact Finish - Mating | AU |
| Contact Finish - Termination | GOLD |
| Contact Gender | MALE |
| Contact Material | COPPER ALLOY |
| Contact Pattern | STAGGERED |
| Contact Resistance | 9 mohm |
| Contact Style | RND PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 1000VAC V |
| Empty Shell | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max | 3.336 N |
| Insulation Resistance | 5000000000 ohm |
| Insulator Material | GLASS FILLED POLYAMIDE |
| JESD-609 Code | e4 |
| Manufacturer Series | 2D |
| Mating Contact Pitch | 0.075 inch |
| Mating Contact Row Spacing | 0.065 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | #4-40 |
| Mounting Option 2 | JACKPOST |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Number Of PCB Rows | 3 |
| Number of Rows Loaded | 3 |
| Operating Temperature-Max | 85 Cel |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | STAGGERED |
| PCB Contact Row Spacing | 2.54 mm |
| Rated Current (Signal) | 2 A |
| Reliability | COMMERCIAL |
| Shell Finish | CADMIUM |
| Shell Material | STEEL |
| Shell Size | 1/E |
| Sub Category | D Type Connectors |
| Terminal Length | 0.148 inch |
| Terminal Pitch | 1.905 mm |
| Termination Type | CRIMP |
| Total Number of Contacts | 19 |
| Wire Size-Max | 22 AWG |
| Wire Size-Min | 26 AWG |
| Withdrawl Force-Min | 3.336 N |
| 会社名称 | ITT Corporation. |
|---|---|
| 設立 | 1920 |
| URL | http://www.ittcannon.com/ |
