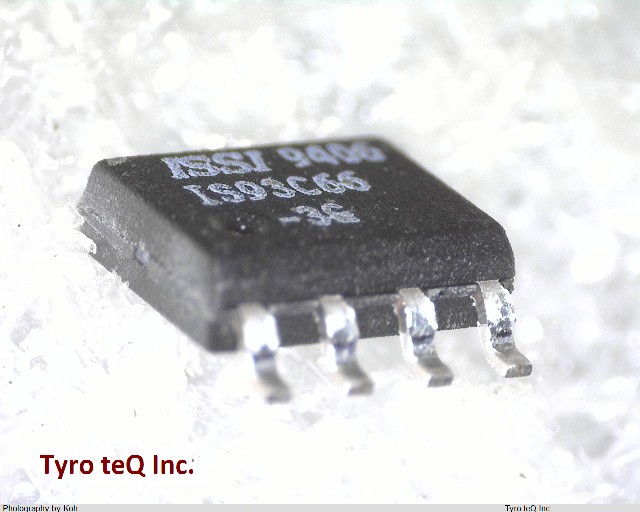

IS93C66-3G
1
-
- 個
２営業日以内に回答いたします
IS93C66-3G の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | IS93C66-3G |
|---|---|
| メーカー | ISSI |
| Additional Feature | AUTOMATIC WRITE |
| Clock Frequency-Max (fCLK) | 1 MHz |
| Data Retention Time-Min | 10 |
| Endurance | 100000 Write/Erase Cycles |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Memory Density | 4096 bit |
| Memory IC Type | EEPROM |
| Memory Width | 16 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Number of Words | 256 words |
| Number of Words Code | 256 |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -40 Cel |
| Organization | 256X16 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Parallel/Serial | SERIAL |
| Power Supplies | 3/5 V |
| Qualification Status | Not Qualified |
| Serial Bus Type | MICROWIRE |
| Standby Current-Max | 1.0E-5 Amp |
| Sub Category | EEPROMs |
| Supply Current-Max | 0.006 mA |
| Supply Voltage-Max (Vsup) | 6 V |
| Supply Voltage-Min (Vsup) | 2.7 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Write Cycle Time-Max (tWC) | 10 ms |
| Write Protection | SOFTWARE |
| 会社名称 | Integrated Silicon Solution, Inc. |
|---|---|
| 設立 | 1988 |
| 所在地 | 1623 Buckeye Dr.Milpitas, California 95035 |
| URL | http://www.issi.com/ |
