IS63LV1024L-10TLI データシート

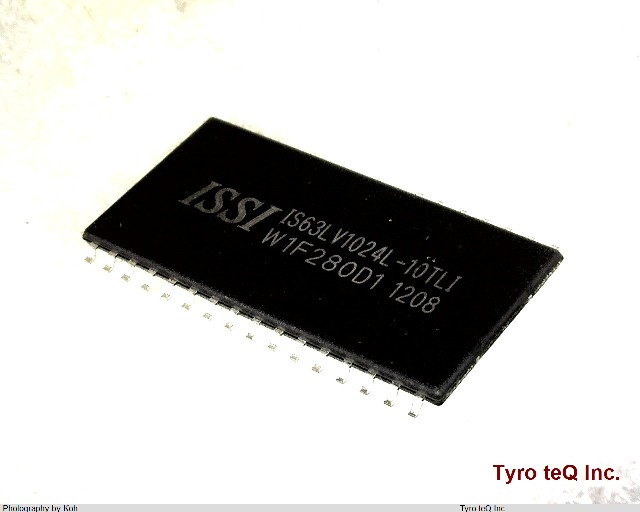

Name: IS63LV1024L-10TLI
Brand: ISSI
SKU: 190014414-0000-0000-0000

IS63LV1024L-10TLI - ISSI の商品詳細ページです。

２営業日以内に回答いたします

IS63LV1024L-10TLI の詳細情報

型番	IS63LV1024L-10TLI
メーカー	ISSI
データシート
Access Time-Max	10 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G32
JESD-609 Code	e3
Length	20.95 mm
Memory Density	1048576 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	32
Number of Words	131072 words
Number of Words Code	128K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	128KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP32,.46
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Standby Current-Max	0.0015 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.105 mA
Supply Voltage-Max (Vsup)	3.45 V
Supply Voltage-Min (Vsup)	3.15 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	10.16 mm
