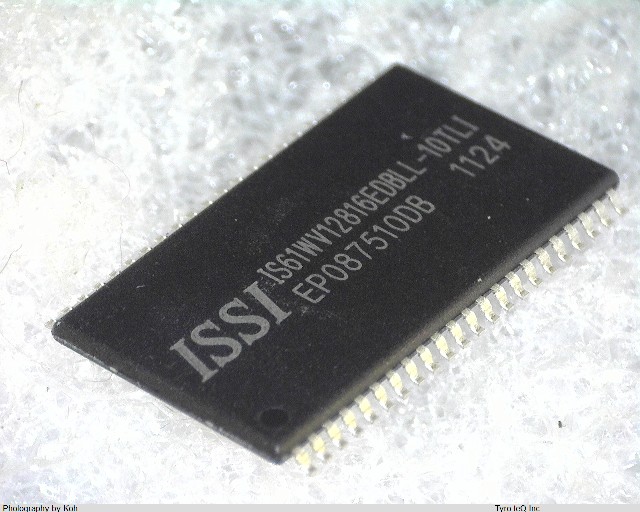

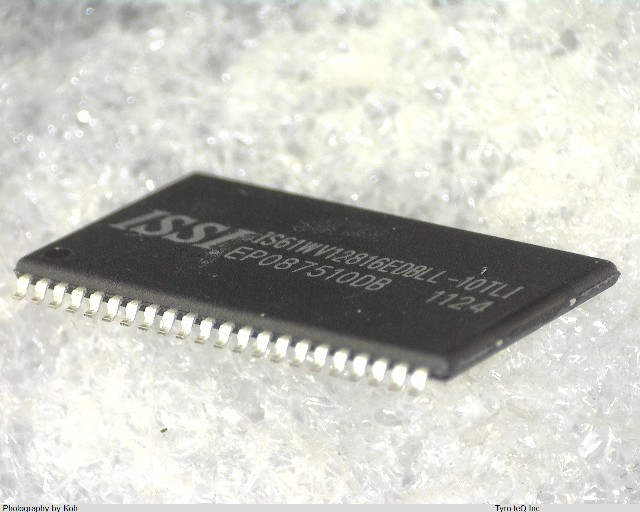

IS61WV12816EDBLL-10TLI
1
-
- 個
２営業日以内に回答いたします
IS61WV12816EDBLL-10TLI の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | IS61WV12816EDBLL-10TLI |
|---|---|
| メーカー | ISSI |
| Access Time-Max | 10 ns |
| JESD-30 Code | R-PDSO-G44 |
| Length | 18.41 mm |
| Memory Density | 2097152 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 16 |
| Number of Functions | 1 |
| Number of Terminals | 44 |
| Number of Words | 131072 words |
| Number of Words Code | 128K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Organization | 128KX16 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSOP2 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Seated Height-Max | 1.2 mm |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 2.4 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.8 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Width | 10.16 mm |
| 会社名称 | Integrated Silicon Solution, Inc. |
|---|---|
| 設立 | 1988 |
| 所在地 | 1623 Buckeye Dr.Milpitas, California 95035 |
| URL | http://www.issi.com/ |
