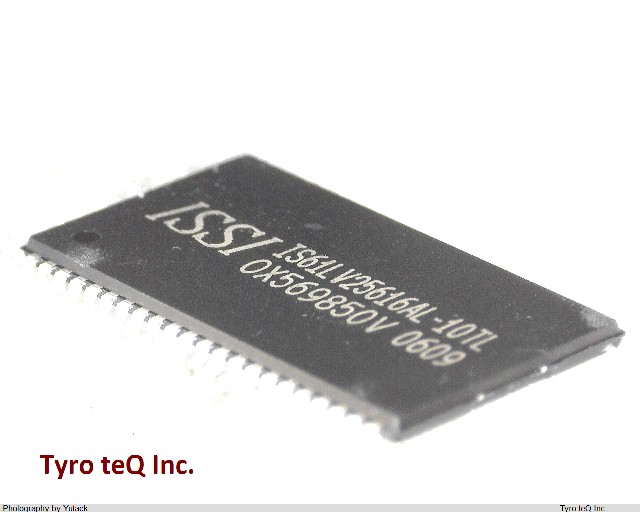

IS61LV25616AL-10TL

Name: IS61LV25616AL-10TL
Brand: ISSI
SKU: 190106791-0000-0000-0000

IS61LV25616AL-10TL - ISSI の商品詳細ページです。

２営業日以内に回答いたします

IS61LV25616AL-10TL の詳細情報

型番	IS61LV25616AL-10TL
メーカー	ISSI
Access Time-Max	10 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G44
JESD-609 Code	e3
Length	18.415 mm
Memory Density	4194304 bit
Memory IC Type	STANDARD SRAM
Memory Width	16
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	44
Number of Words	262144 words
Number of Words Code	256K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	256KX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP44,.46,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Standby Current-Max	0.01 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.09 mA
Supply Voltage-Max (Vsup)	3.63 V
Supply Voltage-Min (Vsup)	3.135 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	10.16 mm
