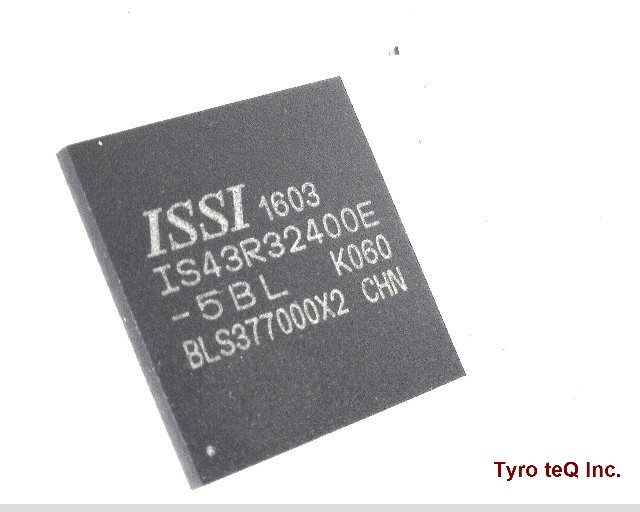

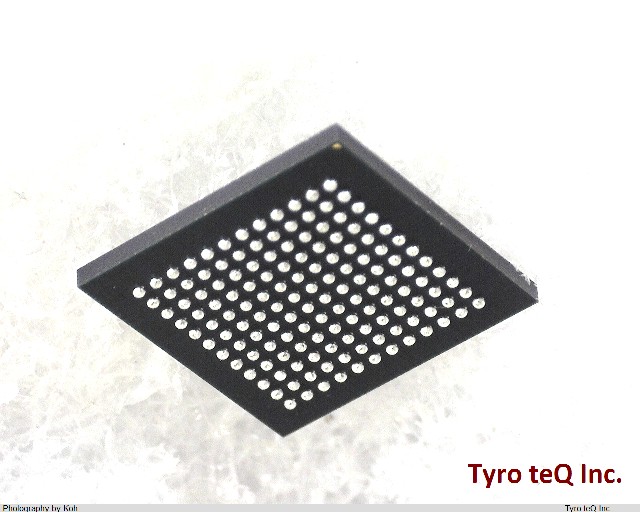

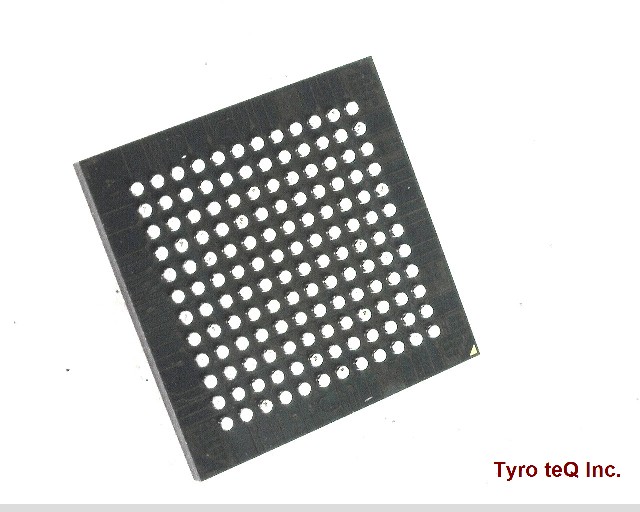

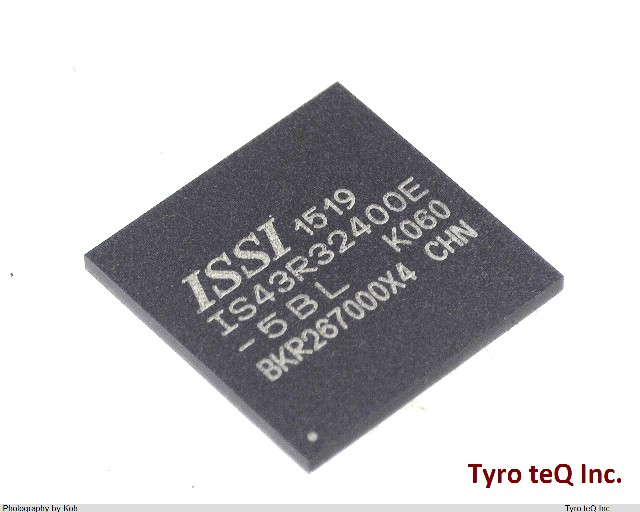

IS43R32400E-5BL

Name: IS43R32400E-5BL
Brand: ISSI
SKU: 190095397-0000-0000-0000

IS43R32400E-5BL - ISSI の商品詳細ページです。

２営業日以内に回答いたします

IS43R32400E-5BL の詳細情報

型番	IS43R32400E-5BL
メーカー	ISSI
Access Mode	FOUR BANK PAGE BURST
Access Time-Max	0.7 ns
Additional Feature	AUTO/SELF REFRESH
Clock Frequency-Max (fCLK)	200 MHz
I/O Type	COMMON
Interleaved Burst Length	2,4,8
JESD-30 Code	S-PBGA-B144
Length	12 mm
Memory Density	134217728 bit
Memory IC Type	DDR1 DRAM
Memory Width	32
Number of Functions	1
Number of Ports	1
Number of Terminals	144
Number of Words	4194304 words
Number of Words Code	4M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	4MX32
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	LFBGA
Package Equivalence Code	BGA144,12X12,32
Package Shape	SQUARE
Package Style	GRID ARRAY, LOW PROFILE, FINE PITCH Meter
Power Supplies	2.5 V
Qualification Status	Not Qualified
Refresh Cycles	4096
Seated Height-Max	1.4 mm
Self Refresh	YES
Sequential Burst Length	2,4,8
Standby Current-Max	0.005 Amp
Sub Category	DRAMs
Supply Current-Max	0.32 mA
Supply Voltage-Max (Vsup)	2.7 V
Supply Voltage-Min (Vsup)	2.3 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Width	12 mm
