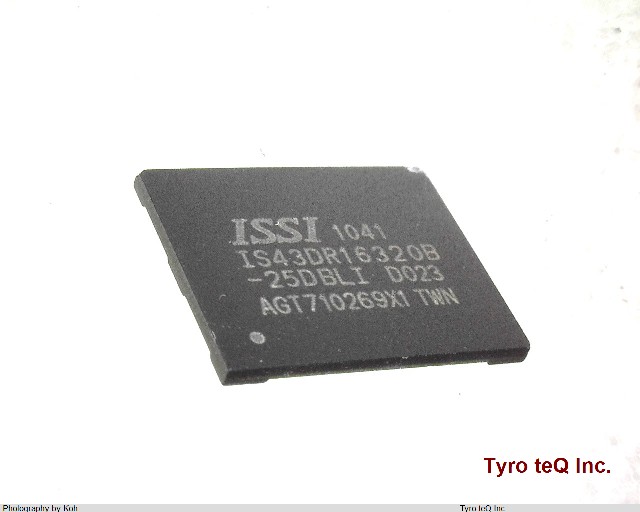

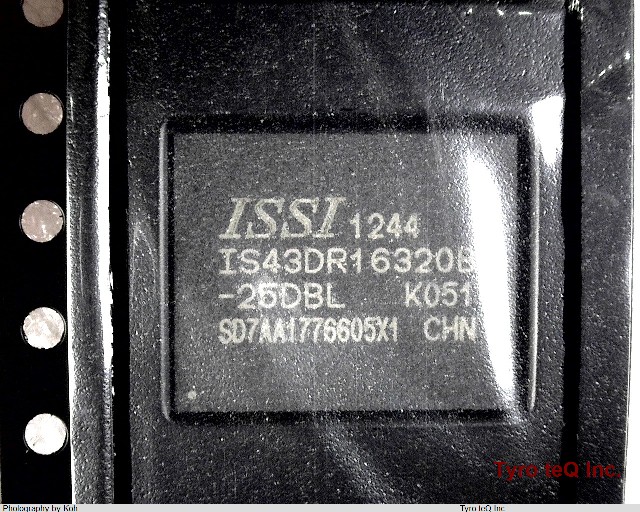

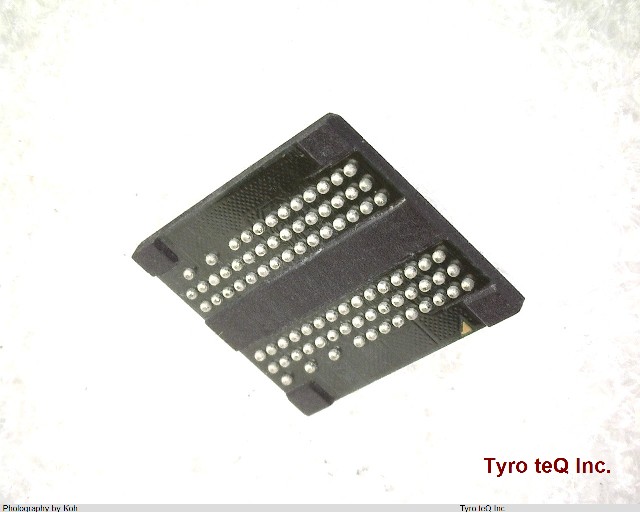

IS43DR16320B-25DBL データシート

Name: IS43DR16320B-25DBL
Brand: ISSI
SKU: 190079894-0000-0000-0000

IS43DR16320B-25DBL - ISSI の商品詳細ページです。

２営業日以内に回答いたします

IS43DR16320B-25DBL の詳細情報

型番	IS43DR16320B-25DBL
メーカー	ISSI
データシート
Access Mode	FOUR BANK PAGE BURST
Access Time-Max	0.4 ns
Additional Feature	AUTO/SELF REFRESH
Clock Frequency-Max (fCLK)	400 MHz
I/O Type	COMMON
Interleaved Burst Length	4,8
JESD-30 Code	R-PBGA-B84
JESD-609 Code	e1
Length	13 mm
Memory Density	536870912 bit
Memory IC Type	DDR2 DRAM
Memory Width	16
Moisture Sensitivity Level	1
Number of Functions	1
Number of Ports	1
Number of Terminals	84
Number of Words	33554432 words
Number of Words Code	32M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	32MX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TFBGA
Package Equivalence Code	BGA84,9X15,32
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8 V
Qualification Status	Not Qualified
Refresh Cycles	8192
Seated Height-Max	1.2 mm
Self Refresh	YES
Sequential Burst Length	4,8
Standby Current-Max	0.008 Amp
Sub Category	DRAMs
Supply Current-Max	0.35 mA
Supply Voltage-Max (Vsup)	1.9 V
Supply Voltage-Min (Vsup)	1.7 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	10.5 mm
