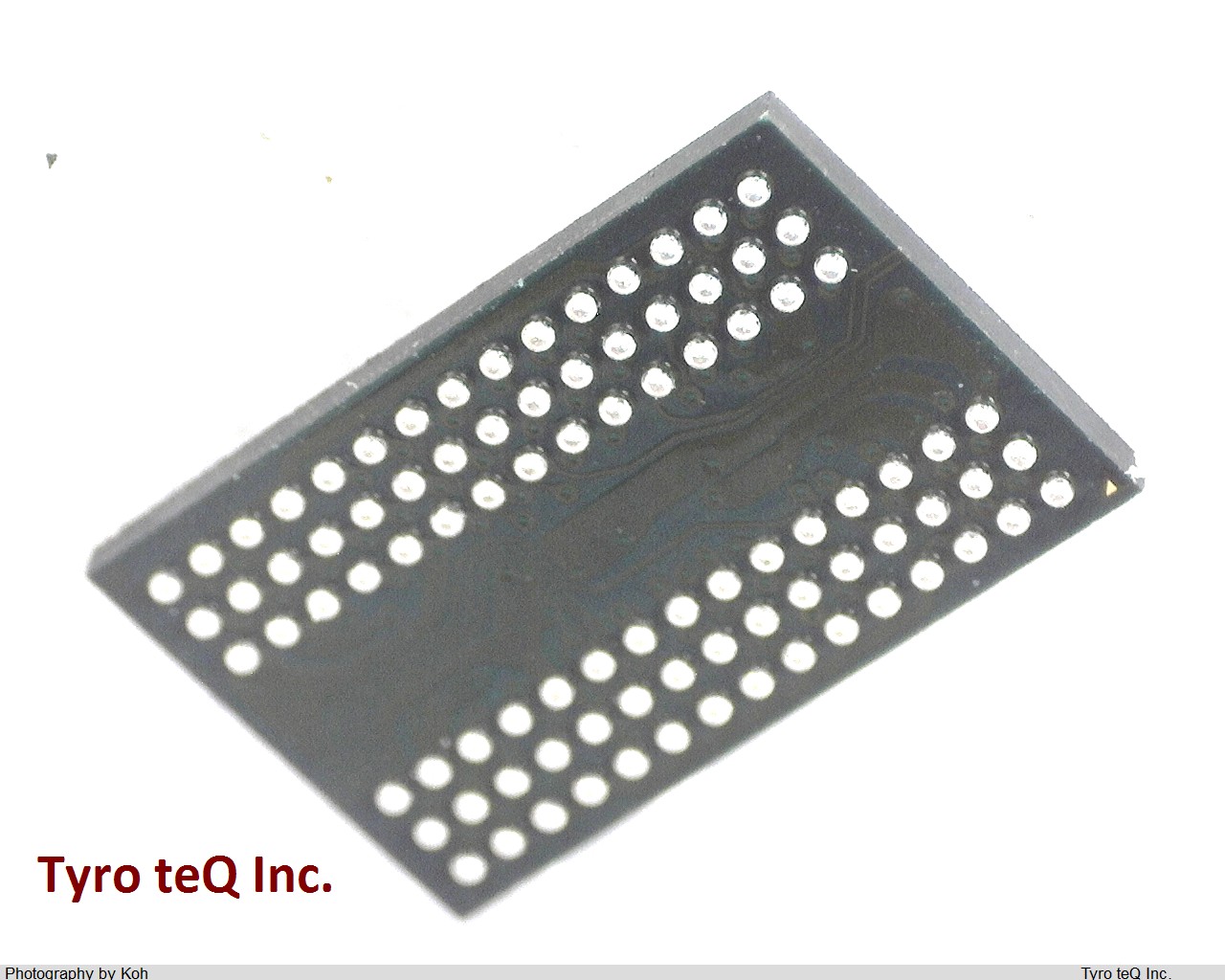

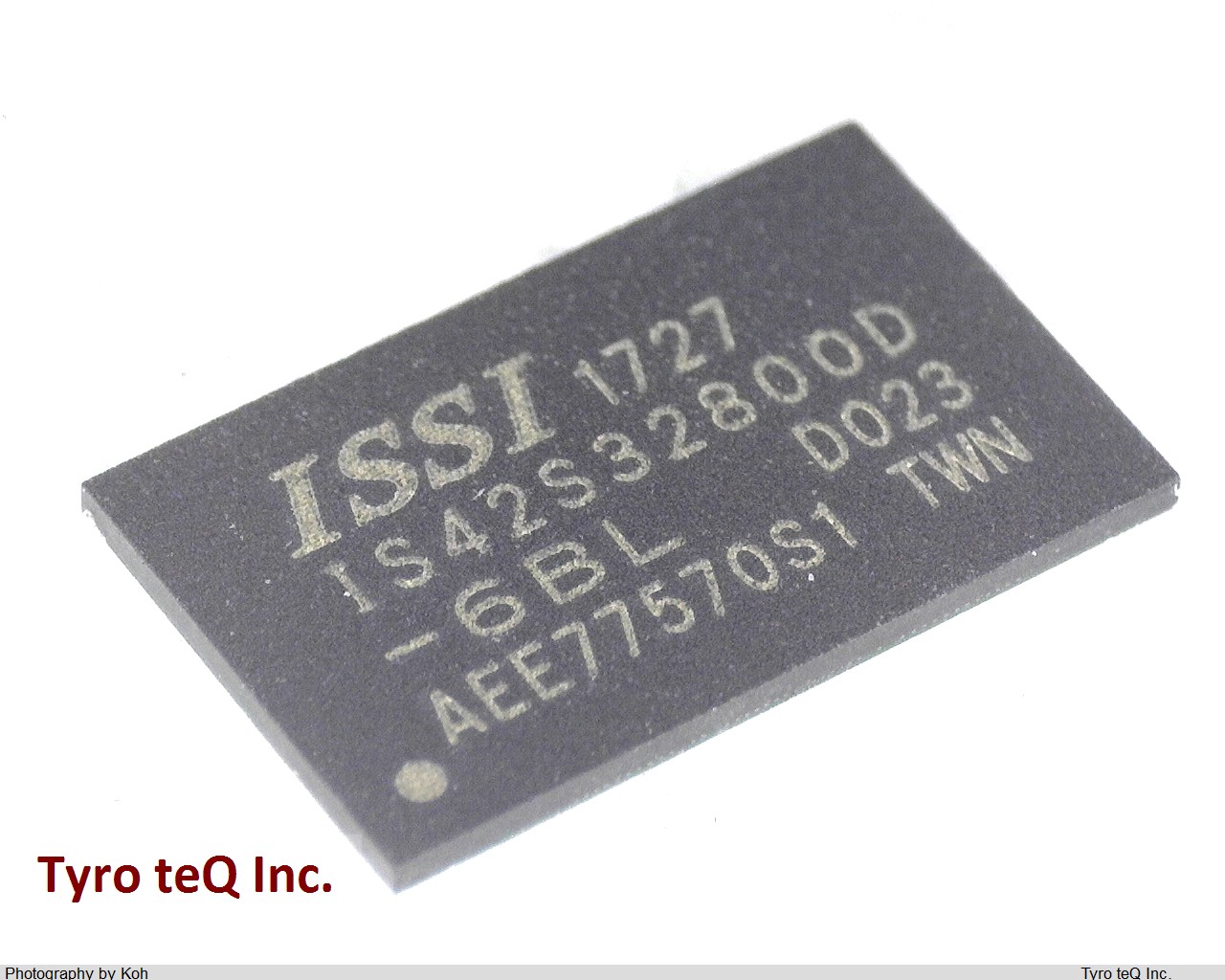

IS42S32800D-6BL

Name: IS42S32800D-6BL
Brand: ISSI
SKU: 190043031-0000-0000-0000

IS42S32800D-6BL - ISSI の商品詳細ページです。

２営業日以内に回答いたします

IS42S32800D-6BL の詳細情報

型番	IS42S32800D-6BL
メーカー	ISSI
Access Mode	FOUR BANK PAGE BURST
Access Time-Max	5.4 ns
Additional Feature	AUTO/SELF REFRESH
Clock Frequency-Max (fCLK)	166 MHz
I/O Type	COMMON
Interleaved Burst Length	1,2,4,8
JESD-30 Code	R-PBGA-B90
JESD-609 Code	e1
Length	13 mm
Memory Density	268435456 bit
Memory IC Type	SYNCHRONOUS DRAM
Memory Width	32
Moisture Sensitivity Level	3
Number of Functions	1
Number of Ports	1
Number of Terminals	90
Number of Words	8388608 words
Number of Words Code	8M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	8MX32
Package Body Material	PLASTIC/EPOXY
Package Code	TFBGA
Package Equivalence Code	BGA90,9X15,32
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Refresh Cycles	4096
Seated Height-Max	1.2 mm
Self Refresh	YES
Sequential Burst Length	1,2,4,8,FP
Standby Current-Max	0.003 Amp
Sub Category	DRAMs
Supply Current-Max	0.35 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	10
Width	8 mm
