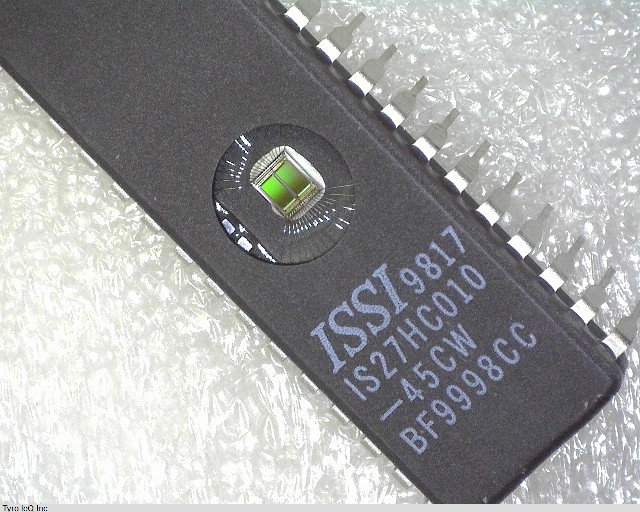

IS27HC010-45CW
1
-
- 個
２営業日以内に回答いたします
IS27HC010-45CW の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | IS27HC010-45CW |
|---|---|
| メーカー | ISSI |
| Access Time-Max | 45 ns |
| JESD-30 Code | R-GDIP-T32 |
| JESD-609 Code | e0 |
| Length | 41.91 mm |
| Memory Density | 1048576 bit |
| Memory IC Type | UVPROM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Number of Words | 131072 words |
| Number of Words Code | 128K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -40 Cel |
| Organization | 128KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | WDIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE, WINDOW Meter |
| Parallel/Serial | PARALLEL |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.715 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
| 会社名称 | Integrated Silicon Solution, Inc. |
|---|---|
| 設立 | 1988 |
| 所在地 | 1623 Buckeye Dr.Milpitas, California 95035 |
| URL | http://www.issi.com/ |
