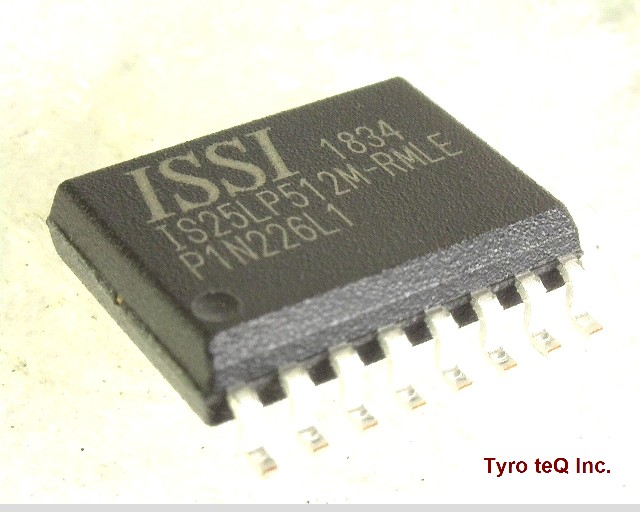

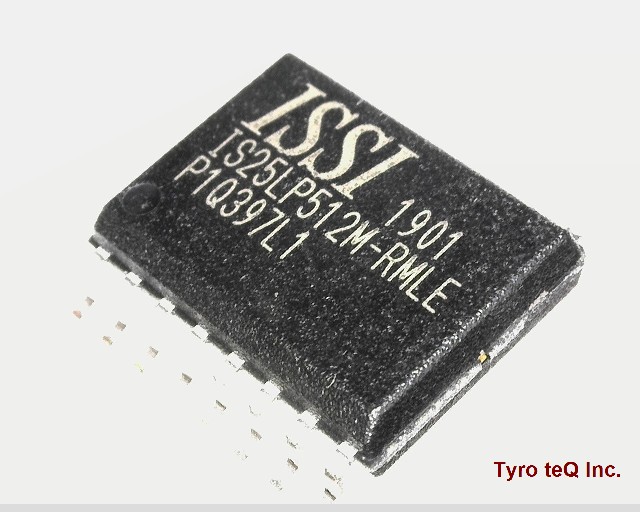

IS25LP512M-RMLE

Name: IS25LP512M-RMLE
Brand: ISSI
SKU: 190110583-0000-0000-0000

IS25LP512M-RMLE - ISSI の商品詳細ページです。

２営業日以内に回答いたします

IS25LP512M-RMLE の詳細情報

型番	IS25LP512M-RMLE
メーカー	ISSI
Alternate Memory Width	1
Clock Frequency-Max (fCLK)	133 MHz
Data Retention Time-Min	20
Endurance	100000 Write/Erase Cycles
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	10.31 mm
Memory Density	536870912 bit
Memory IC Type	FLASH
Memory Width	8
Number of Functions	1
Number of Terminals	16
Number of Words	67108864 words
Number of Words Code	64M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Organization	64MX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	260
Programming Voltage	3 V
Seated Height-Max	2.65 mm
Serial Bus Type	SPI
Standby Current-Max	0.00014 Amp
Supply Current-Max	0.035 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.3 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Type	NOR TYPE
Width	7.49 mm
Write Protection	HARDWARE/SOFTWARE
