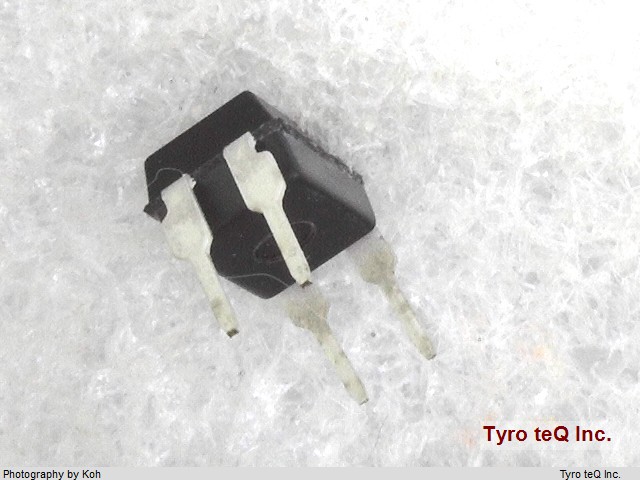

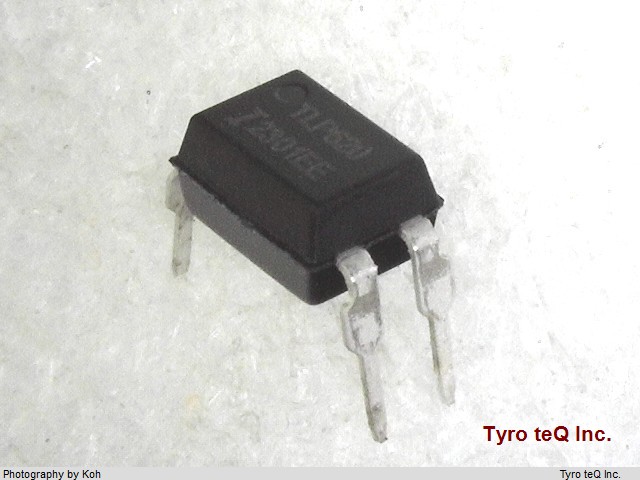

TLP620
1
-
- 個
２営業日以内に回答いたします
TLP620 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | TLP620 |
|---|---|
| メーカー | ISOCOM |
| Additional Feature | UL RECOGNIZED |
| Coll-emtr Bkdn Voltage-Min | 55 V |
| Coll-emtr Bkdn Voltage-Min (V) | 55 |
| Configuration | SEPARATE, 2 CHANNELS |
| Current Transfer Ratio-Min | 50 % |
| Current Transfer Ratio-Min (%) | 50 |
| Current Transfer Ratio-Nom | 50 % |
| Dark Current-Max | 100 nA |
| Dark Current-Max (nA) | 100 |
| Forward Current-Max | 0.005 A |
| Forward Current-Max (A) | 0.06 |
| Forward Voltage-Max | 1.3 V |
| Forward Voltage-Max (V) | 1.3 |
| Isolation Voltage-Max | 5000 V |
| Isolation Voltage-Max (V) | 5000 |
| JESD-609 Code | e0 |
| Mounting Feature | SURFACE MOUNT |
| Number of Elements | 1 |
| On-State Current-Max | 0.05 A |
| On-state Current-Max (A) | 0.05 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Min (Cel) | -25 |
| Optoelectronic Device Type | AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER |
| Packing Method | TR |
| Power Dissipation-Max | 0.1 W |
| Power Dissipation-Max (W) | 0.15 |
| Response Time-Max | 3.0E-6 s |
| Sub Category | Optocoupler - Transistor Outputs |
| Terminal Finish | Pure Tin (Sn) |
| 会社名称 | ISOCOM COMPONENTS |
|---|---|
| 所在地 | Unit 25B Park View Road West Park View Industrial Estate Hartlepool Cleveland TS25 1UD United Kingdom |
| URL | http://www.isocom.com |
