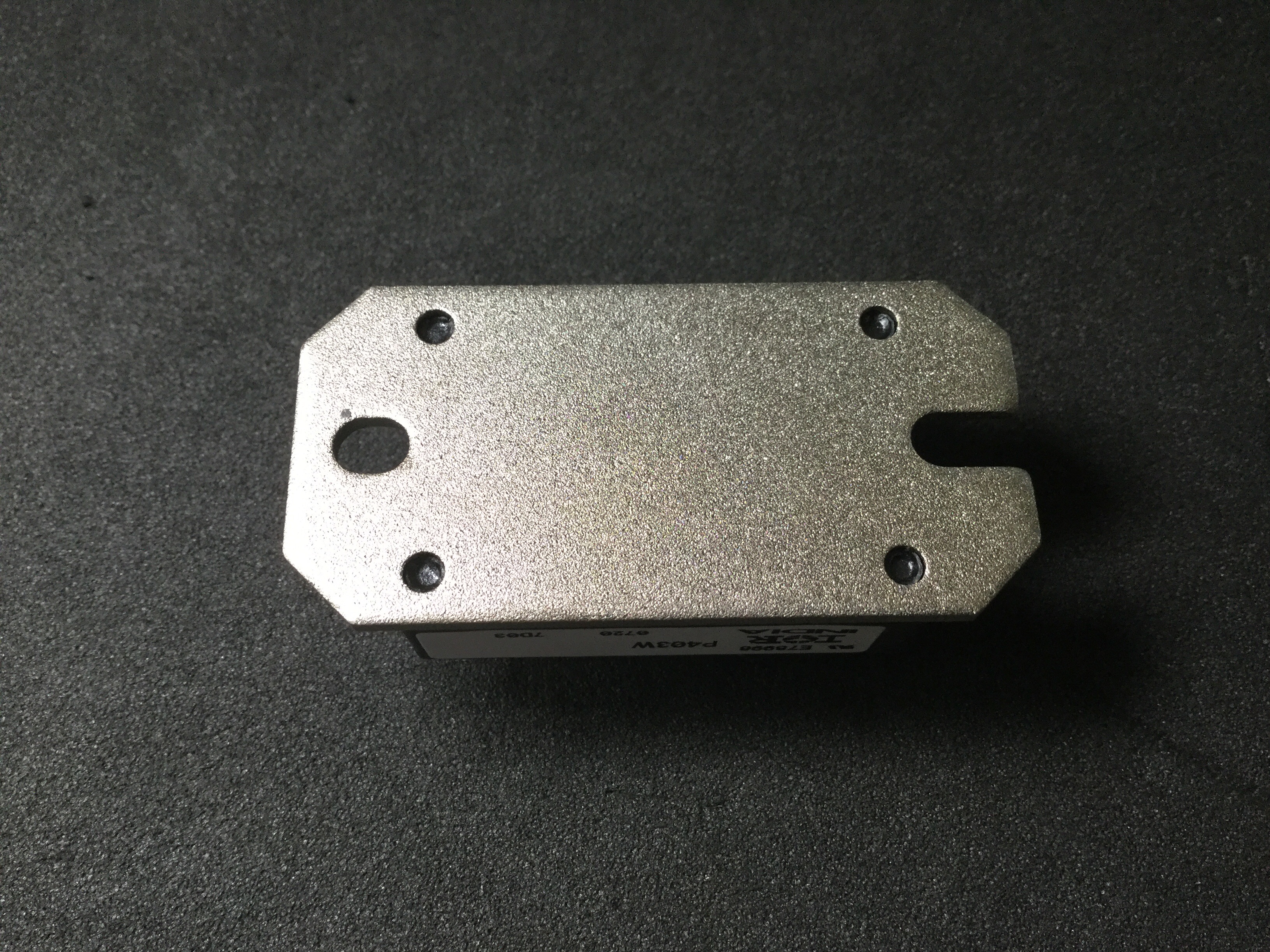

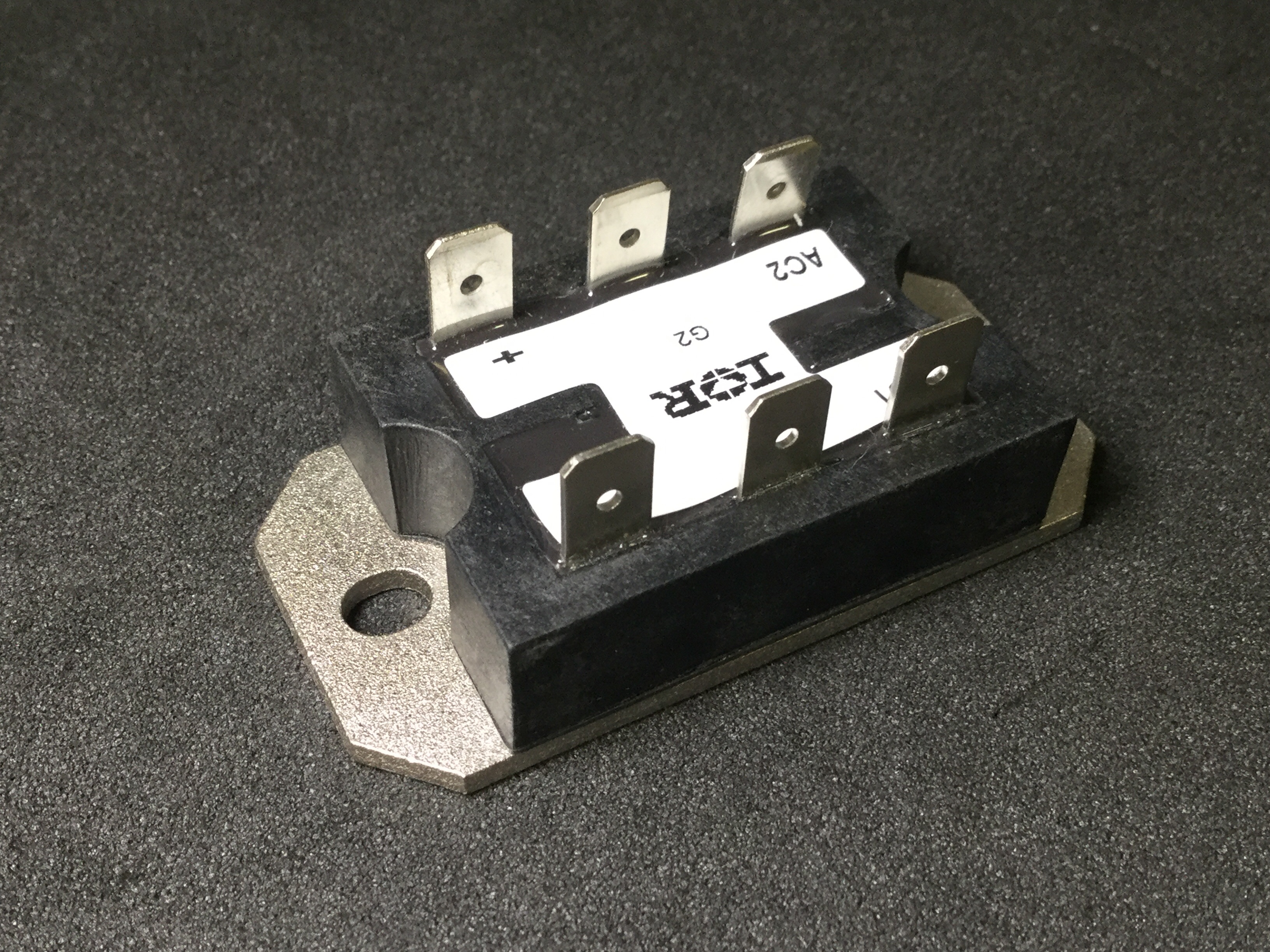

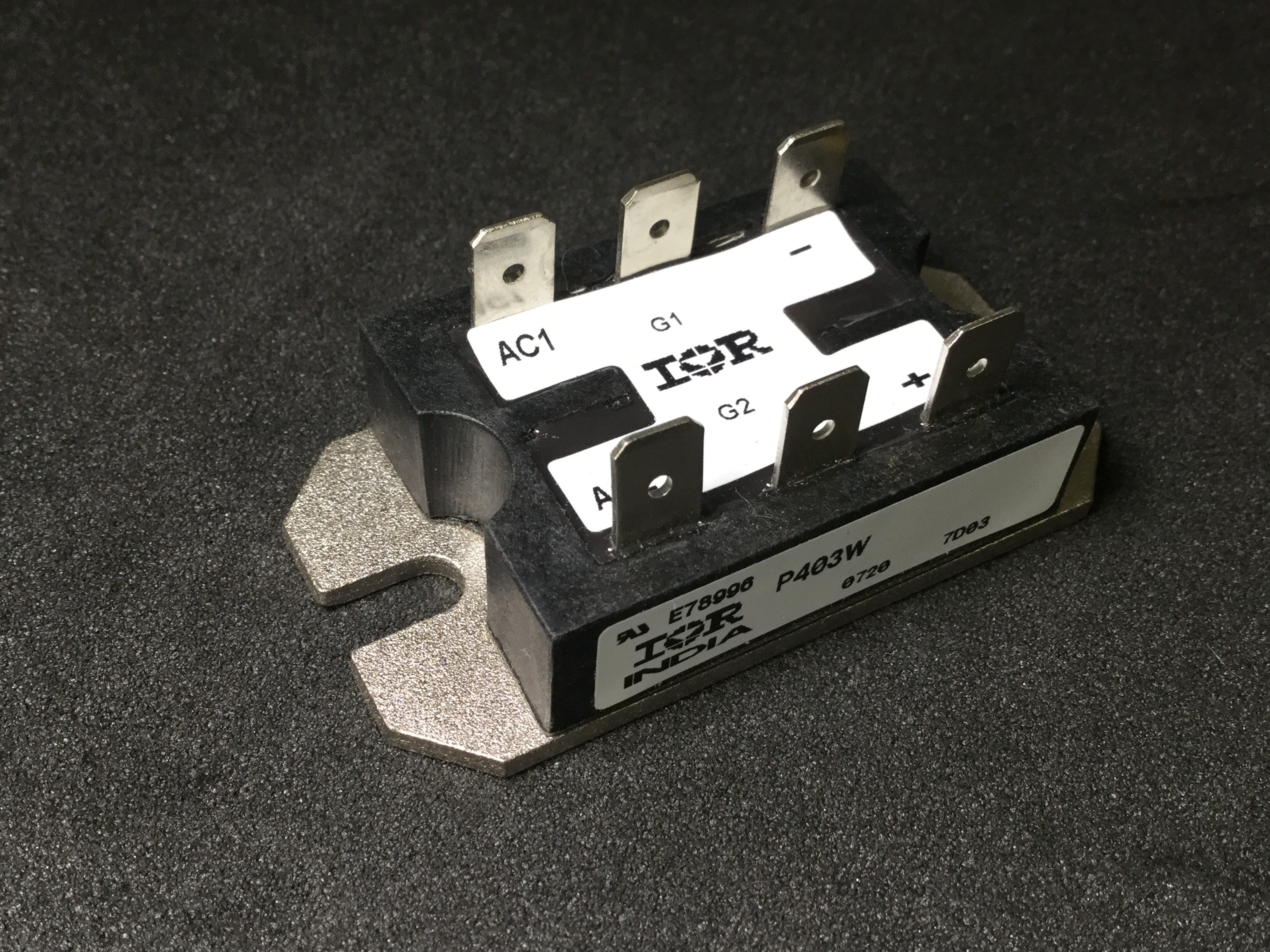

P403W

Name: P403W
Brand: IR
SKU: 260239957-0000-0000-0000

P403W - IR の商品詳細ページです。

２営業日以内に回答いたします

P403W の詳細情報

型番	P403W
メーカー	IR
Case Connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN DIODE
DC Gate Trigger Current-Max	60 mA
DC Gate Trigger Voltage-Max	2 V
Desc. of Quick-Connects	2G-2AK-CA-CK
Desc. of Screw Terminals	0
Holding Current-Max	100 mA
JESD-30 Code	R-XUFM-D3
JESD-609 Code	e0
Leakage Current-Max	10 mA
Non-Repetitive Pk On-state Cur	400 A
Number of Elements	2
Number of Terminals	3
On-state Current-Max	20000 A
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
RMS On-state Current-Max	31.4 A
Reference Standard	UL RECOGNIZED
Repetitive Peak Off-state Leakage Current-Max	10000 uA
Repetitive Peak Off-state Voltage	800 V
Repetitive Peak Reverse Voltage	800 V
Sub Category	Silicon Controlled Rectifiers
Surface Mount	NO
Terminal Finish	NICKEL
Terminal Form	SOLDER LUG
Terminal Position	UPPER
Time@Peak Reflow Temperature-Max (s)	40
Trigger Device Type	SCR
