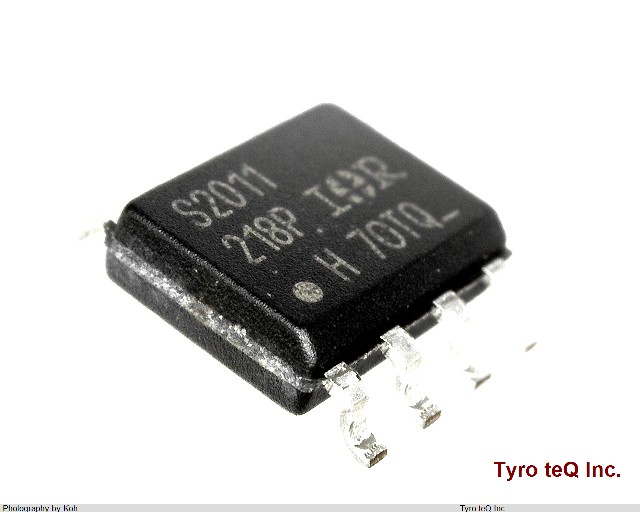

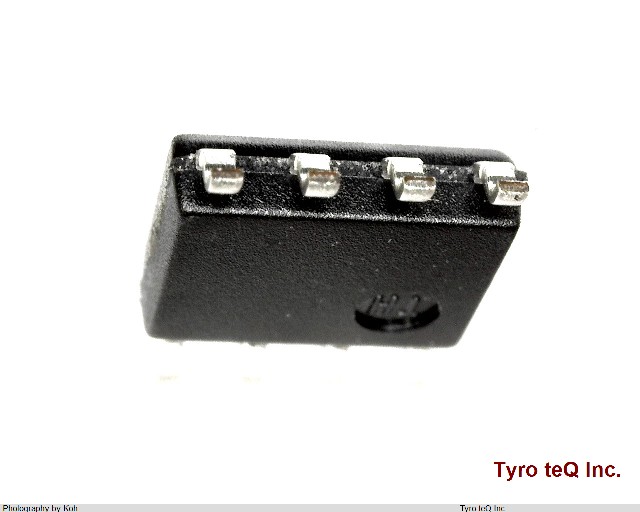

IRS2011SPBF

Name: IRS2011SPBF
Brand: IR
SKU: 190108827-0000-0000-0000

IRS2011SPBF - IR の商品詳細ページです。

２営業日以内に回答いたします

IRS2011SPBF の詳細情報

型番	IRS2011SPBF
メーカー	IR
Built-in Protections	TRANSIENT; UNDER VOLTAGE
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current Flow Direction	SINK
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	MOSFET Drivers
Supply Voltage-Max	20 V
Supply Voltage-Min	10 V
Supply Voltage-Nom	15 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Turn-off Time	0.08 us
Turn-on Time	0.08 us
Width	3.9 mm
