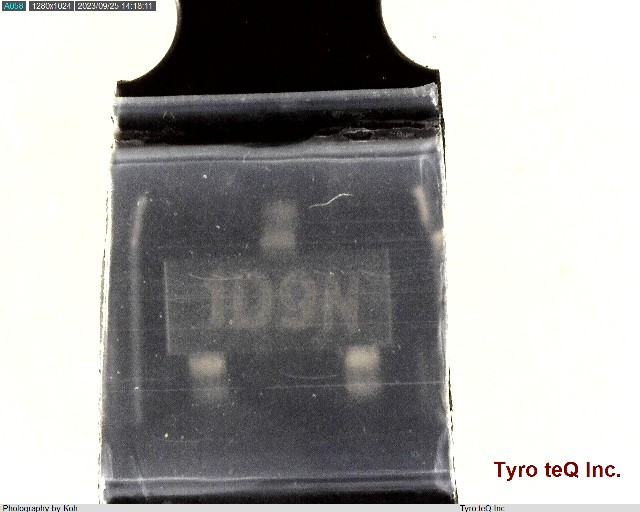

IRLML5103

Name: IRLML5103
Brand: IR
SKU: 400067423-0000-0000-0000

IRLML5103 - IR の商品詳細ページです。

２営業日以内に回答いたします

IRLML5103 の詳細情報

型番	IRLML5103
メーカー	IR
Additional Feature	HIGH RELIABILITY
Application	SWITCHING
Configuration	SINGLE
DLA Qualification	Not Qualified
DS Breakdown Voltage-Min	30 V
DS Breakdown Voltage-Min (V)	30
Drain Current-Max (Abs) (ID)	0.54 A
Drain Current-Max (Abs) (ID) (A)	0.54
Drain Current-Max (ID)	0.54 A
Drain Current-Max (ID) (A)	0.76
Drain-source On Resistance-Max	0.6 ohm
Drain-source On Resistance-Max (ohm)	0.6
FET Technology	METAL-OXIDE SEMICONDUCTOR
J-STD-609 Code	e3
JEDEC-95 Code	TO-236AB
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Max (Cel)	150
Operating Temperature-Min	-55 Cel
Operating Temperature-Min (Cel)	-55
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	0.34 W
Power Dissipation-Max (Abs)	0.28 W
Power Dissipation-Max (W)	0.28
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
