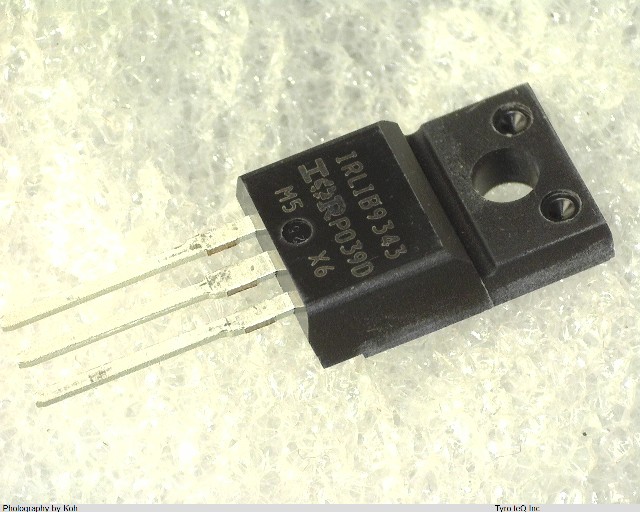

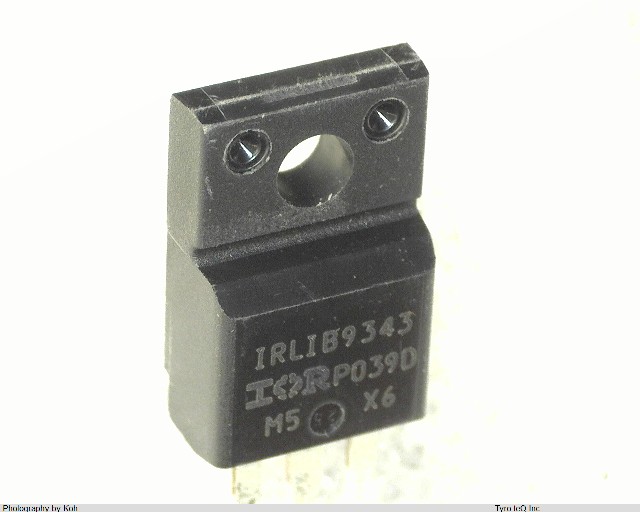

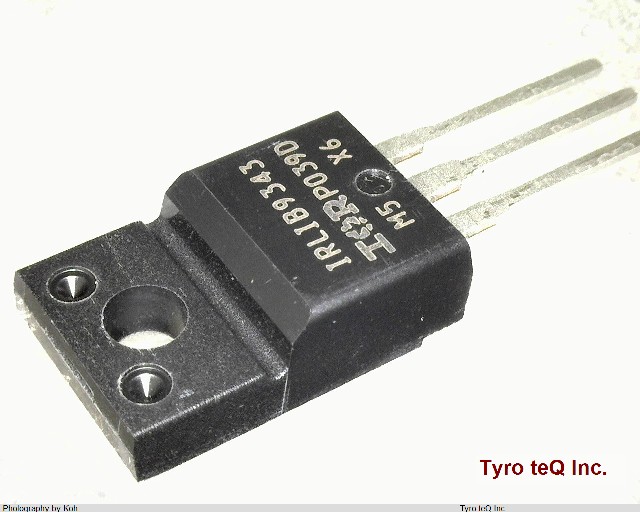

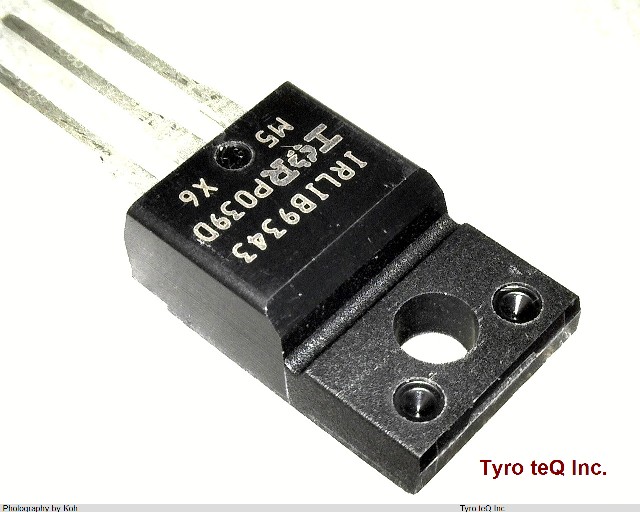

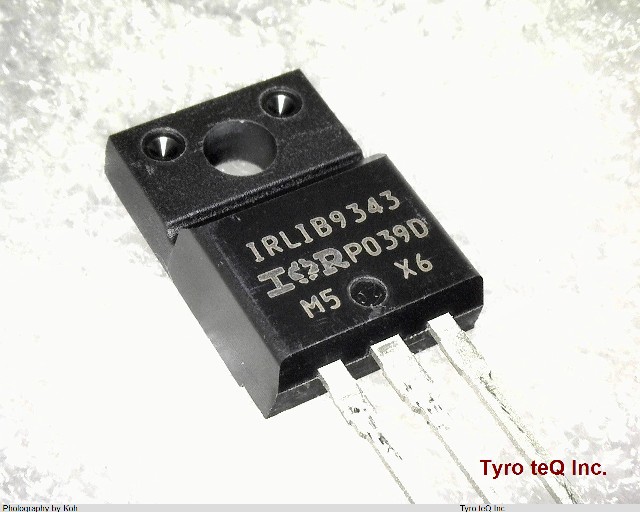

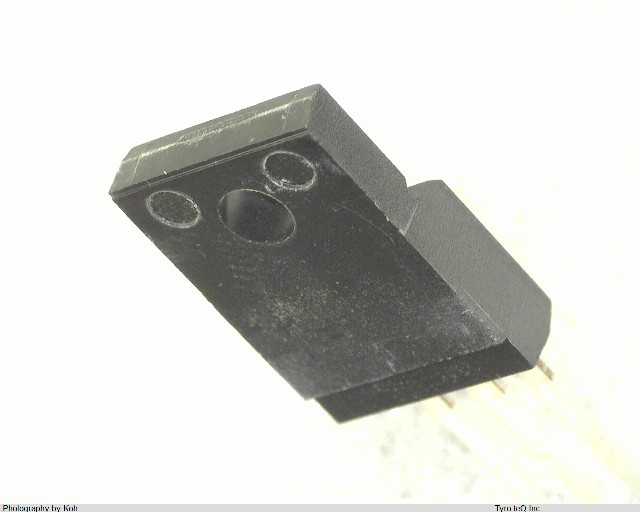

IRLIB9343PBF

Name: IRLIB9343PBF
Brand: IR
SKU: 190109165-0000-0000-0000

IRLIB9343PBF - IR の商品詳細ページです。

２営業日以内に回答いたします

IRLIB9343PBF の詳細情報

型番	IRLIB9343PBF
メーカー	IR
Additional Feature	HIGH RELIABILITY
Avalanche Energy Rating (Eas)	190 mJ
Case Connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	55 V
Drain Current-Max (Abs) (ID)	14 A
Drain Current-Max (ID)	14 A
Drain-source On Resistance-Max	0.105 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	175 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	P-CHANNEL
Power Dissipation-Max (Abs)	33 W
Pulsed Drain Current-Max (IDM)	60 A
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
