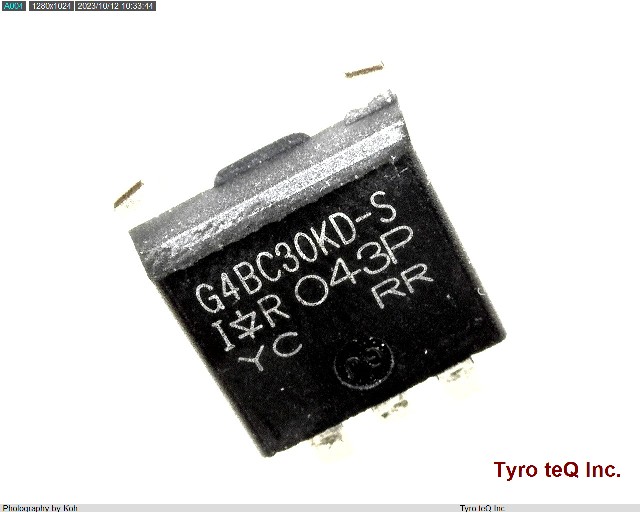

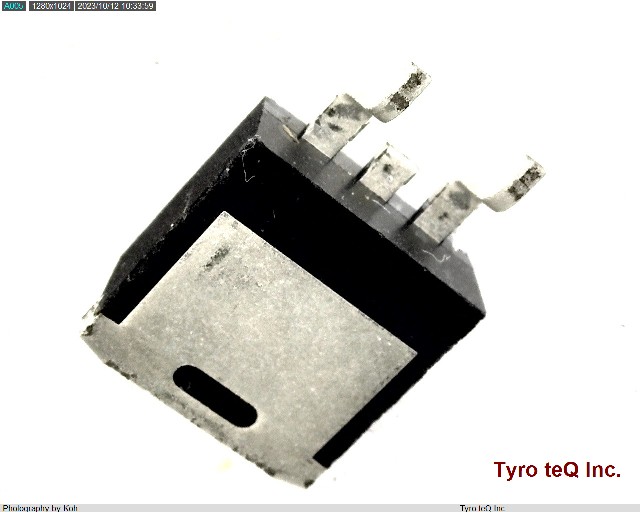

IRG4BC30KD-S データシート

Name: IRG4BC30KD-S
Brand: IR
SKU: 190039387-0000-0000-0000

IRG4BC30KD-S - IR の商品詳細ページです。

２営業日以内に回答いたします

IRG4BC30KD-S の詳細情報

型番	IRG4BC30KD-S
メーカー	IR
データシート
Additional Feature	LOW CONDUCTION LOSS
Case Connection	COLLECTOR
Collector Current-Max (IC)	28 A
Collector-emitter Voltage-Max	600 V
Configuration	SINGLE WITH BUILT-IN DIODE
Fall Time-Max (tf)	120 ns
Gate-emitter Thr Voltage-Max	6 V
Gate-emitter Voltage-Max	20 V
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	225
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	100 W
Qualification Status	Not Qualified
Sub Category	Insulated Gate BIP Transistors
Surface Mount	YES
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	MOTOR CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	160 ns
Turn-on Time-Nom (ton)	60 ns
