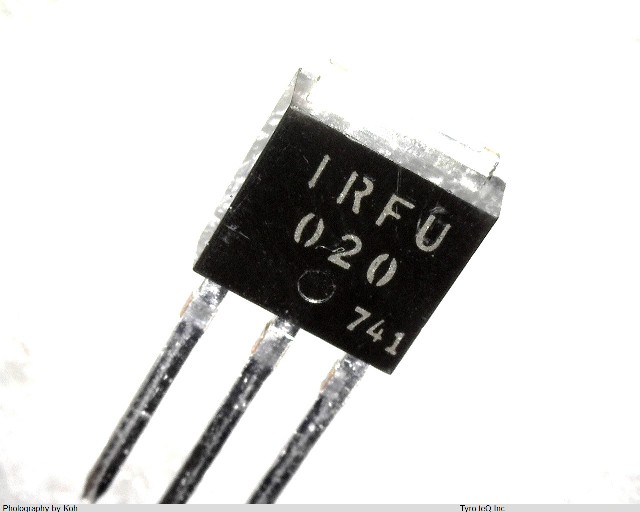

IRFU020

Name: IRFU020
Brand: IR
SKU: 190108495-0000-0000-0000

IRFU020 - IR の商品詳細ページです。

２営業日以内に回答いたします

IRFU020 の詳細情報

型番	IRFU020
メーカー	IR
Additional Feature	FAST SWITCHING
Avalanche Energy Rating (Eas)	9.5 mJ
Case Connection	DRAIN
Configuration	SINGLE
DS Breakdown Voltage-Min	50 V
Drain Current-Max (Abs) (ID)	14 A
Drain Current-Max (ID)	14 A
Drain-source On Resistance-Max	0.1 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-251
JESD-30 Code	R-PSIP-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	42 W
Power Dissipation-Max (Abs)	42 W
Pulsed Drain Current-Max (IDM)	56 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
