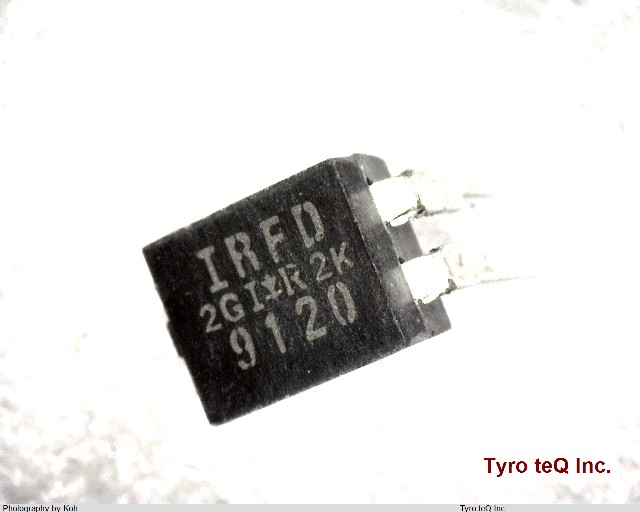

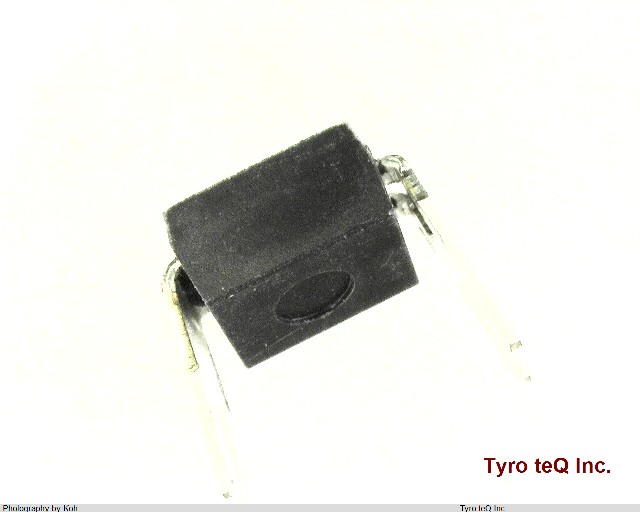

IRFD9120

Name: IRFD9120
Brand: IR
SKU: 190108392-0000-0000-0000

IRFD9120 - IR の商品詳細ページです。

２営業日以内に回答いたします

IRFD9120 の詳細情報

型番	IRFD9120
メーカー	IR
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	140 mJ
Case Connection	DRAIN
Configuration	SINGLE
DS Breakdown Voltage-Min	100 V
Drain Current-Max (Abs) (ID)	1 A
Drain Current-Max (ID)	1 A
Drain-source On Resistance-Max	0.6 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	100 pF
JEDEC-95 Code	TO-250AA
JESD-30 Code	R-PDIP-T3
JESD-609 Code	e0
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	P-CHANNEL
Power Dissipation Ambient-Max	1 W
Power Dissipation-Max (Abs)	1 W
Pulsed Drain Current-Max (IDM)	8 A
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
