IRF7413 データシート

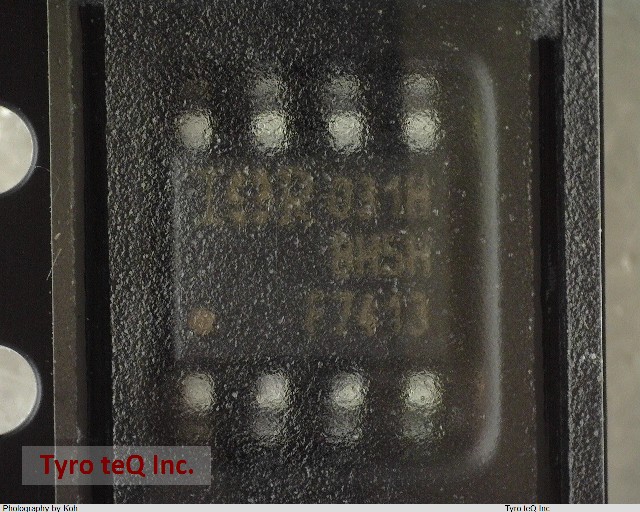

Name: IRF7413
Brand: IR
SKU: 190000301-0000-0000-0000

IRF7413 - IR の商品詳細ページです。

２営業日以内に回答いたします

IRF7413 の詳細情報

型番	IRF7413
メーカー	IR
データシート
Additional Feature	AVALANCHE RATED, HIGH RELIABILITY, ULTRA-LOW RESISTANCE
Avalanche Energy Rating (Eas)	32 mJ
Configuration	SINGLE
DS Breakdown Voltage-Min	30 V
Drain Current-Max (Abs) (ID)	11 A
Drain Current-Max (ID)	12 A
Drain-source On Resistance-Max	0.01 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	MS-012AA
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	8
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	2.5 W
Pulsed Drain Current-Max (IDM)	58 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
