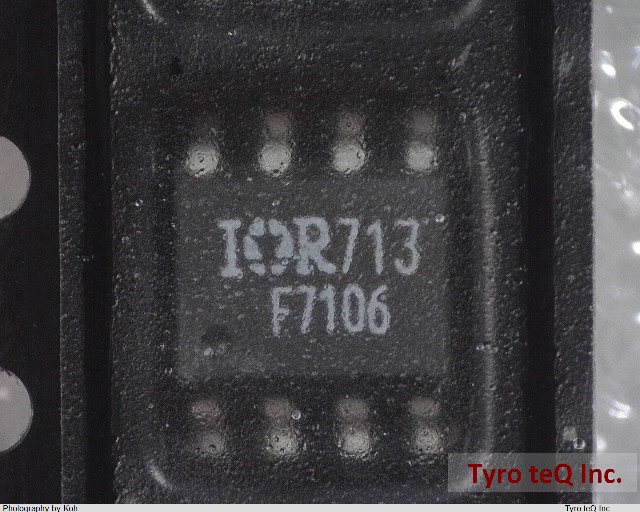

IRF7106 データシート

Name: IRF7106
Brand: IR
SKU: 190000565-0000-0000-0000

IRF7106 - IR の商品詳細ページです。

２営業日以内に回答いたします

IRF7106 の詳細情報

型番	IRF7106
メーカー	IR
データシート
Additional Feature	LOGIC LEVEL COMPATIBLE
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	20 V
Drain Current-Max (Abs) (ID)	3 A
Drain Current-Max (ID)	3 A
Drain-source On Resistance-Max	0.125 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	2
Number of Terminals	8
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL AND P-CHANNEL
Power Dissipation Ambient-Max	2 W
Power Dissipation-Max (Abs)	2 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON
