IRF540PBF データシート

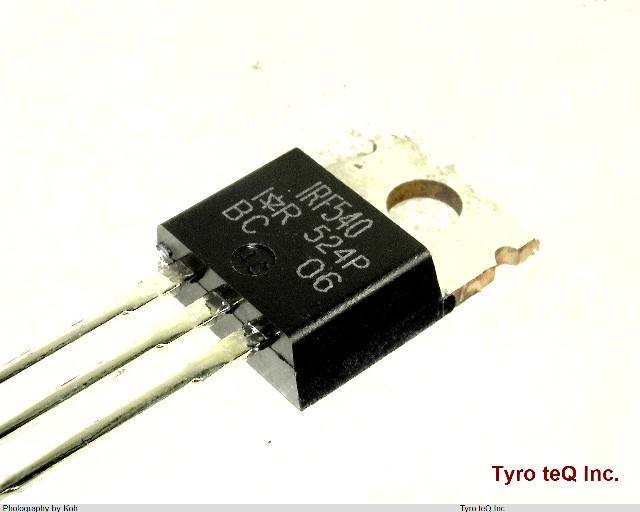

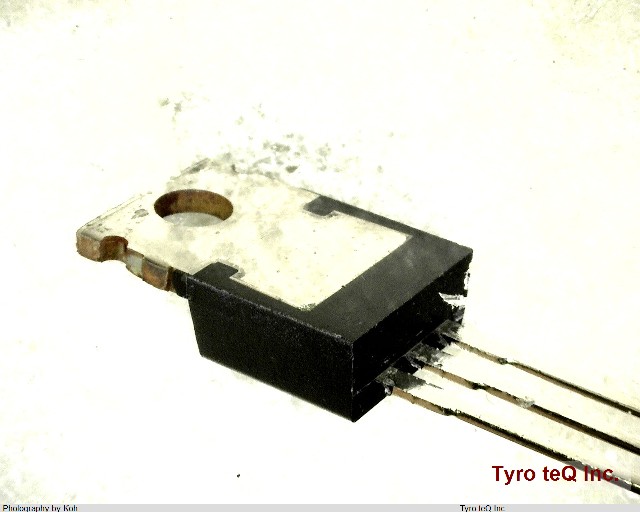

Name: IRF540PBF
Brand: IR
SKU: 190076016-0000-0000-0000

IRF540PBF - IR の商品詳細ページです。

No Image

２営業日以内に回答いたします

IRF540PBF の詳細情報

型番	IRF540PBF
メーカー	IR
データシート
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	230 mJ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	100 V
Drain Current-Max (Abs) (ID)	28 A
Drain Current-Max (ID)	28 A
Drain-source On Resistance-Max	0.077 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	120 pF
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	250
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	150 W
Pulsed Drain Current-Max (IDM)	110 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
