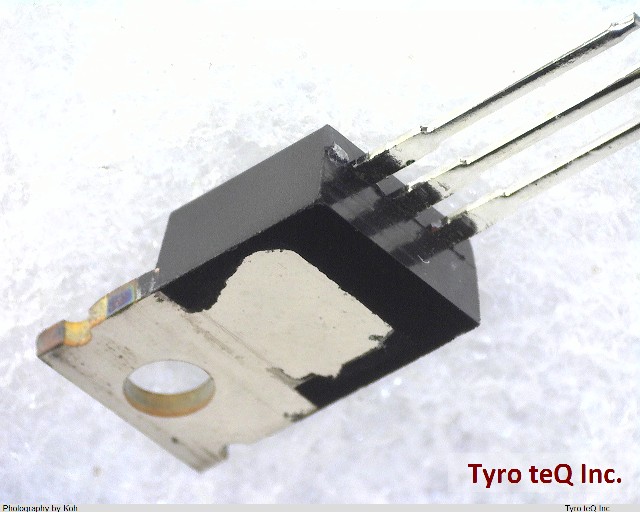

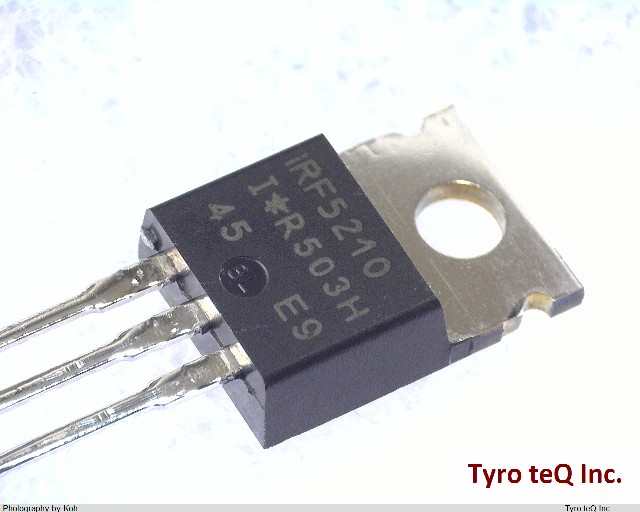

IRF5210

Name: IRF5210
Brand: IR
SKU: 190037847-0000-0000-0000

IRF5210 - IR の商品詳細ページです。

２営業日以内に回答いたします

IRF5210 の詳細情報

型番	IRF5210
メーカー	IR
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	120 mJ
Case Connection	DRAIN
Configuration	SINGLE
DS Breakdown Voltage-Min	80 V
Drain Current-Max (Abs) (ID)	35 A
Drain Current-Max (ID)	9.2 A
Drain-source On Resistance-Max	0.06 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-3
JESD-30 Code	O-MBFM-P2
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	METAL
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	225
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	150 W
Pulsed Drain Current-Max (IDM)	37 A
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	GULL WING
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
