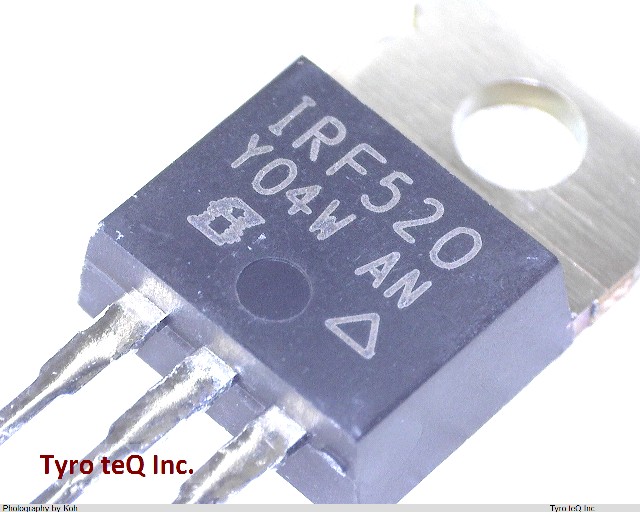

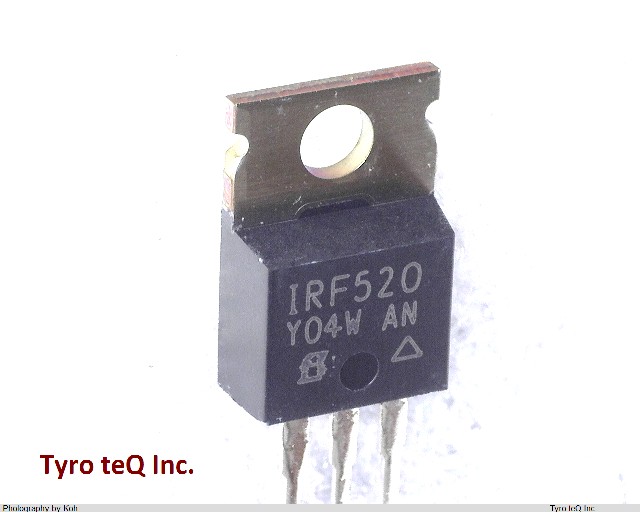

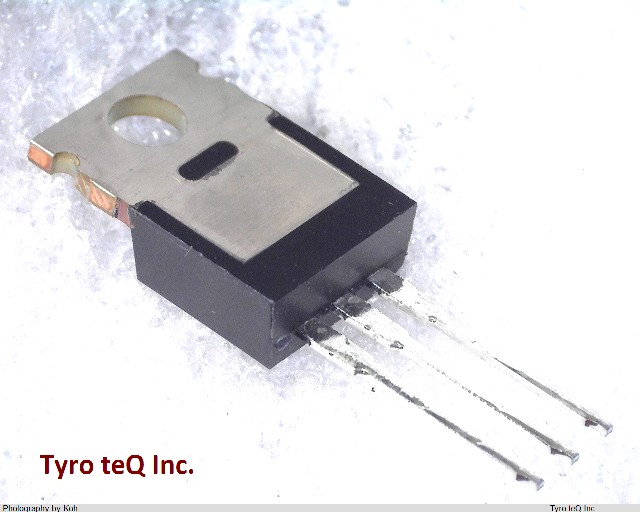

IRF520PBF

Name: IRF520PBF
Brand: IR
SKU: 190105837-0000-0000-0000

IRF520PBF - IR の商品詳細ページです。

２営業日以内に回答いたします

IRF520PBF の詳細情報

型番	IRF520PBF
メーカー	IR
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	200 mJ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	100 V
Drain Current-Max (Abs) (ID)	8 A
Drain Current-Max (ID)	9.2 A
Drain-source On Resistance-Max	0.27 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	250
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	40 W
Pulsed Drain Current-Max (IDM)	37 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
