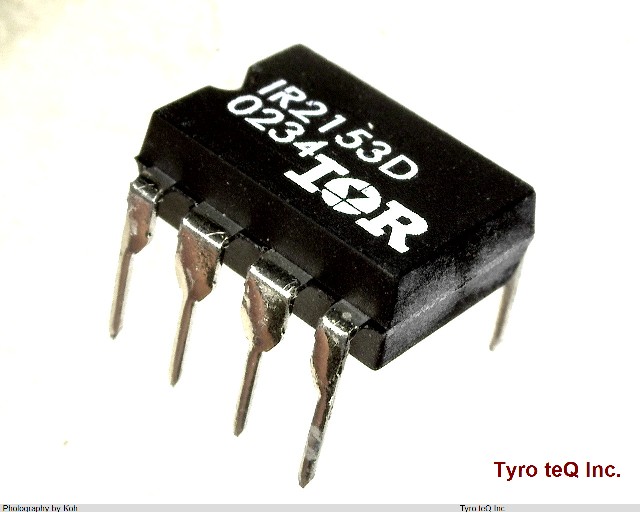

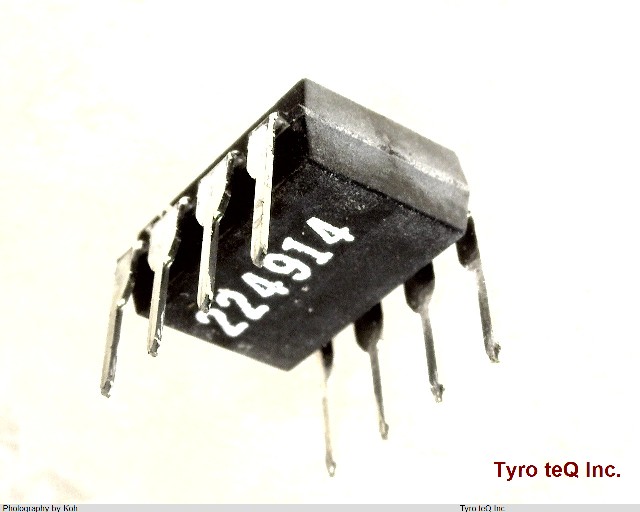

IR2153D データシート

Name: IR2153D
Brand: IR
SKU: 190001479-0000-0000-0000

IR2153D - IR の商品詳細ページです。

２営業日以内に回答いたします

IR2153D の詳細情報

型番	IR2153D
メーカー	IR
データシート
High Side Driver	YES
Interface IC Type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	12 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	MOSFET Drivers
Supply Voltage-Max	16.8 V
Supply Voltage-Min	10 V
Supply Voltage-Nom	12 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm

会社名称	International Rectifier
設立	1947
所在地	233 Kansas St., El Segundo, California 90245,USA
URL	http://www.irf.com/
