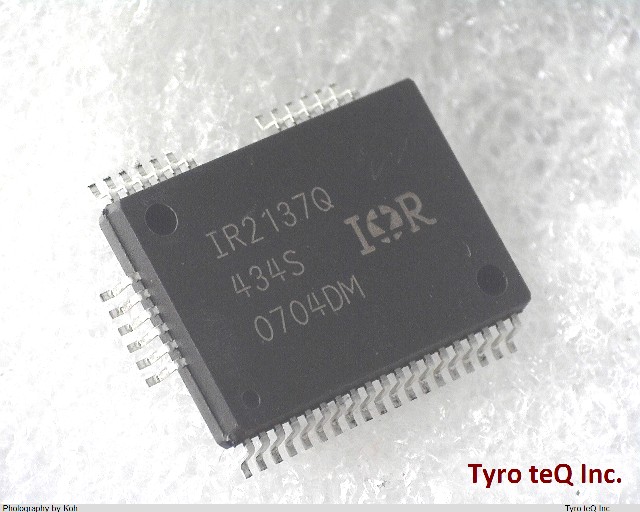

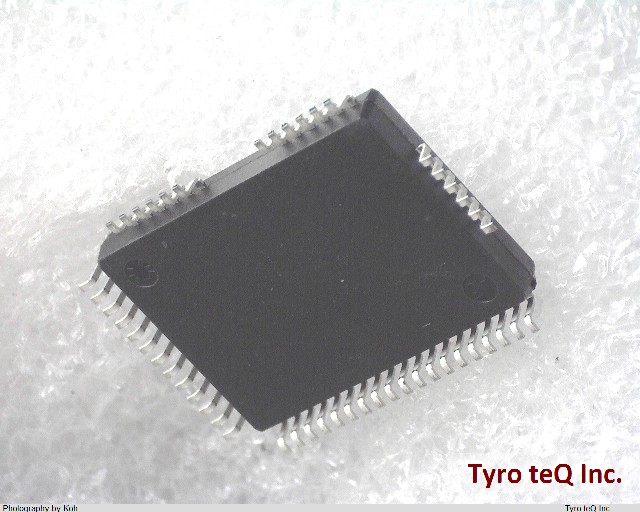

IR2137Q データシート

Name: IR2137Q
Brand: IR
SKU: 190036954-0000-0000-0000

IR2137Q - IR の商品詳細ページです。

２営業日以内に回答いたします

IR2137Q の詳細情報

型番	IR2137Q
メーカー	IR
データシート
Analog IC - Other Type	AC MOTOR CONTROLLER
JESD-30 Code	R-PQFP-G64
JESD-609 Code	e0
Length	20 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	64
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP64,.7X.95,40
Package Shape	RECTANGULAR
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	15 V
Qualification Status	Not Qualified
Seated Height-Max	3.15 mm
Sub Category	Motion Control Electronics
Supply Current-Max (Isup)	20 mA
Supply Voltage-Max (Vsup)	20 V
Supply Voltage-Min (Vsup)	12.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	14 mm

会社名称	International Rectifier
設立	1947
所在地	233 Kansas St., El Segundo, California 90245,USA
URL	http://www.irf.com/
