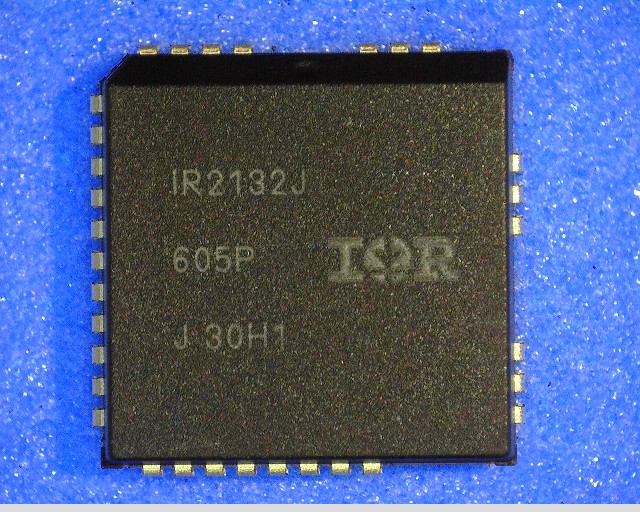

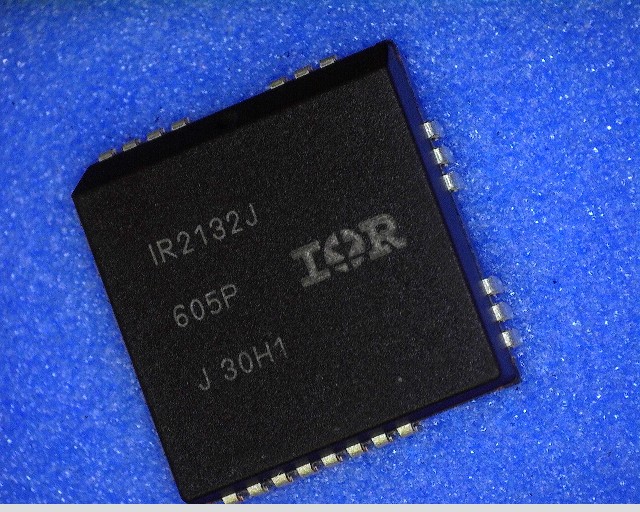

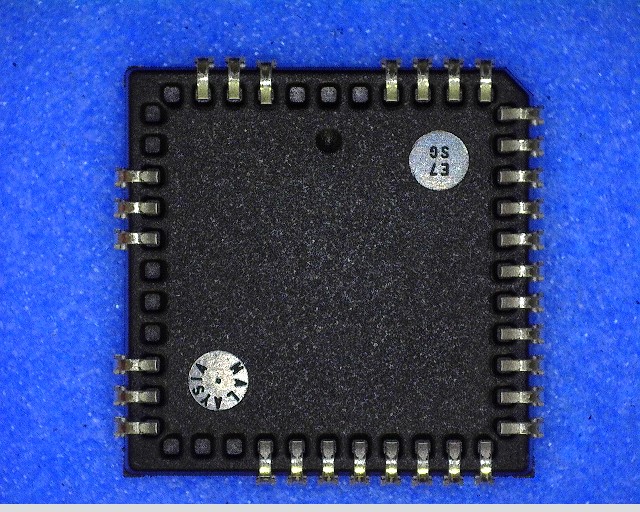

IR2132J

Name: IR2132J
Brand: IR
SKU: 190001467-0000-0000-0000

IR2132J - IR の商品詳細ページです。

２営業日以内に回答いたします

IR2132J の詳細情報

型番	IR2132J
メーカー	IR
High Side Driver	YES
Input Characteristics	STANDARD
Interface IC Type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code	S-PQCC-J32
JESD-609 Code	e0
Length	16.585 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	TOTEM-POLE
Output Peak Current Limit-Nom	0.5 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC44,.7SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	250
Power Supplies	15 V
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Sub Category	MOSFET Drivers
Supply Voltage-Max	20 V
Supply Voltage-Min	10 V
Supply Voltage-Nom	15 V
Supply Voltage1-Max	620 V
Supply Voltage1-Min	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Turn-off Time	0.55 us
Turn-on Time	0.85 us
Width	16.585 mm
