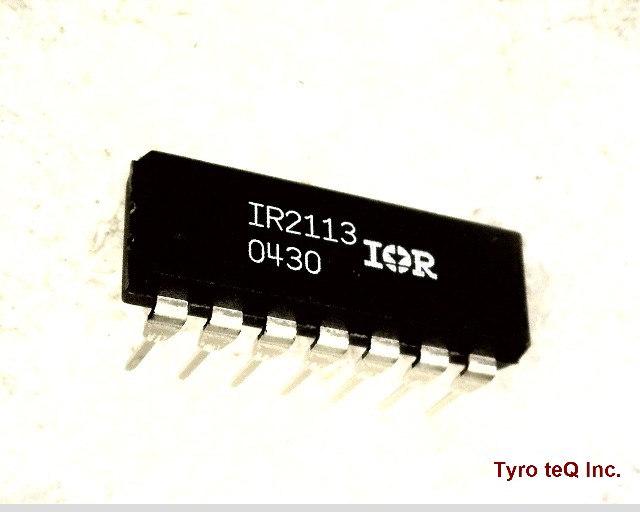

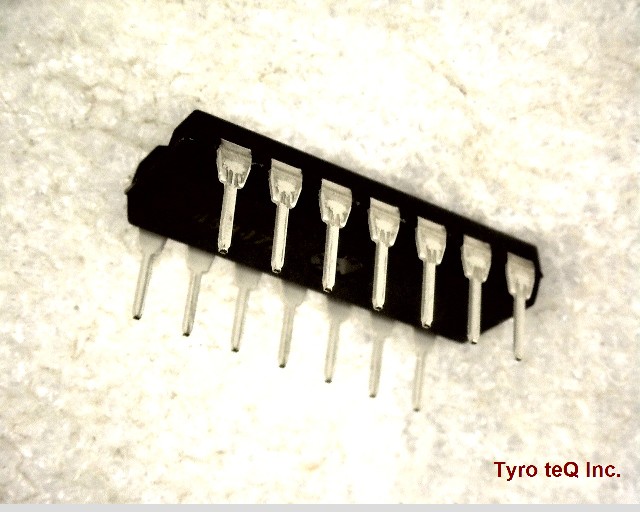

IR2113

Name: IR2113
Brand: IR
SKU: 190001453-0000-0000-0000

IR2113 - IR の商品詳細ページです。

２営業日以内に回答いたします

IR2113 の詳細情報

型番	IR2113
メーカー	IR
High Side Driver	YES
Interface IC Type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code	R-CQCC-N16
JESD-609 Code	e0
Length	8.955 mm
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Number of Functions	1
Number of Terminals	13
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Peak Current Limit-Nom	2 A
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIE OR CHIP
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	15 V
Qualification Status	Not Qualified
Screening Level	MIL-STD-883 Class B
Seated Height-Max	2.65 mm
Sub Category	MOSFET Drivers
Supply Voltage-Max	20 V
Supply Voltage-Min	3.3 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	420 V
Supply Voltage1-Min	6 V
Supply Voltage1-Nom	15 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Turn-off Time	0.125 us
Turn-on Time	0.15 us
Width	7.305 mm
