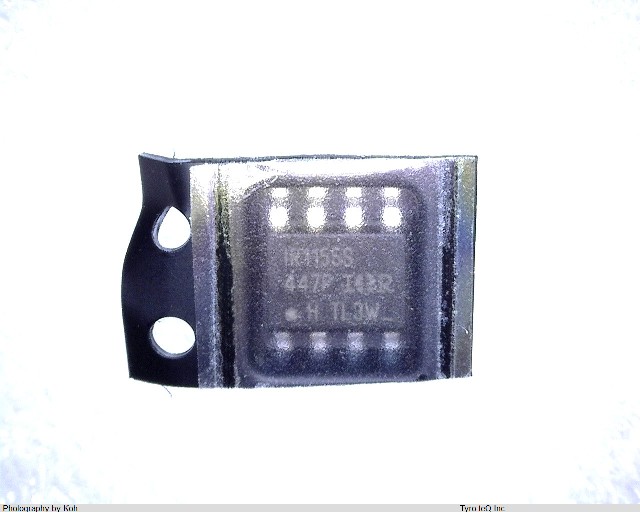

IR1155STRPBF Ir

IR1155STRPBF - IR の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

IR1155STRPBF の詳細情報

  • 仕様・詳細
  • メーカー情報
型番IR1155STRPBF
メーカーIR
Analog IC - Other Type POWER FACTOR CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 19 V
Input Voltage-Min 12 V
Input Voltage-Nom 15 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Power Supplies 15 V
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Sub Category Switching Regulator or Controllers
Supply Current-Max (Isup) 13 mA
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 200 kHz
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
会社名称International Rectifier
設立1947
所在地233 Kansas St., El Segundo, California 90245,USA
URLhttp://www.irf.com/
