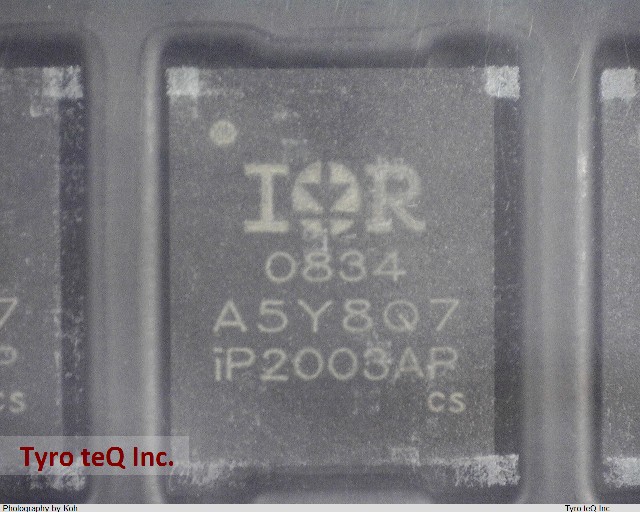

IP2003APBF

Name: IP2003APBF
Brand: IR
SKU: 190103439-0000-0000-0000

IP2003APBF - IR の商品詳細ページです。

２営業日以内に回答いたします

IP2003APBF の詳細情報

型番	IP2003APBF
メーカー	IR
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	4.6 V
Input Voltage-Nom	5 V
JESD-30 Code	R-XBCC-N10
Length	11 mm
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	40 A
Package Body Material	UNSPECIFIED
Package Code	BCC
Package Equivalence Code	LGA10(UNSPEC)
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.31 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1000 kHz
Technology	HYBRID
Temperature Grade	AUTOMOTIVE
Terminal Form	NO LEAD
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	40
Width	9 mm
