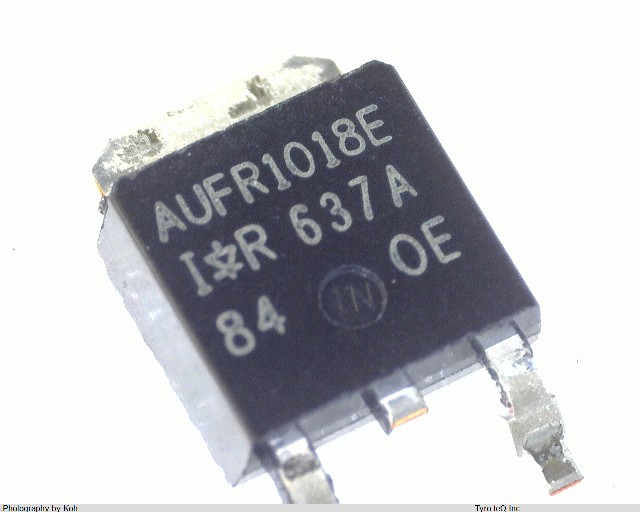

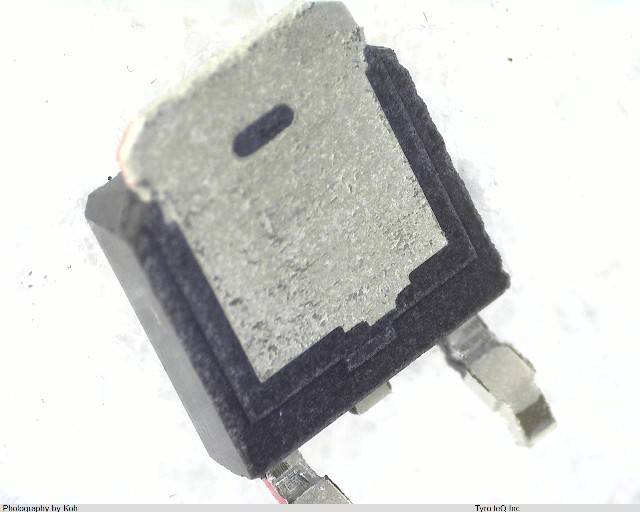

AUIRFR1018E

Name: AUIRFR1018E
Brand: IR
SKU: 110204384-0000-0000-0000

AUIRFR1018E - IR の商品詳細ページです。

２営業日以内に回答いたします

AUIRFR1018E の詳細情報

型番	AUIRFR1018E
メーカー	IR
Additional Feature	ULTRA-LOW RESISTANCE
Avalanche Energy Rating (Eas)	88 mJ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	79 A
Drain Current-Max (ID)	56 A
Drain-source On Resistance-Max	0.0084 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-252AA
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	175 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	110 W
Pulsed Drain Current-Max (IDM)	315 A
Sub Category	FET General Purpose Power
Surface Mount	YES
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	GULL WING
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
