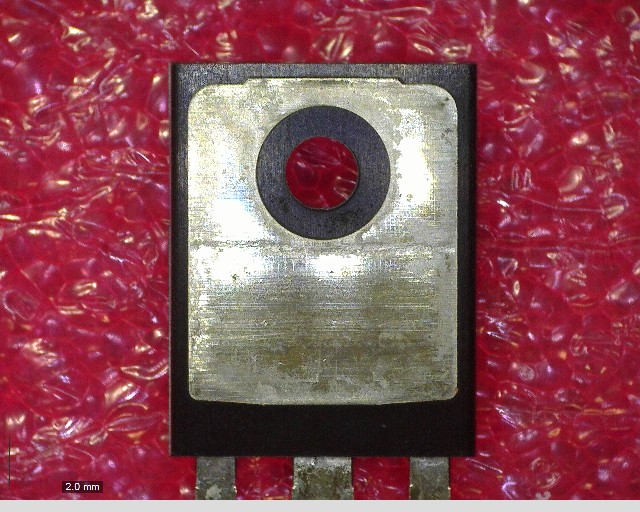

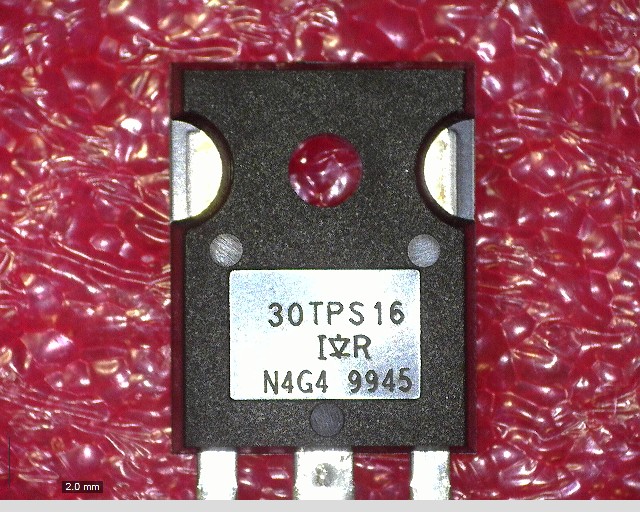

30TPS16

Name: 30TPS16
Brand: IR
SKU: 40185584-0000-0000-0000

30TPS16 - IR の商品詳細ページです。

２営業日以内に回答いたします

30TPS16 の詳細情報

型番	30TPS16
メーカー	IR
Circuit Commutated Turn-off Time-Nom	110 us
Configuration	SINGLE
Critical Rate of Rise of Off-state Voltage-Min	500 V/us
DC Gate Trigger Current-Max	45 mA
DC Gate Trigger Voltage-Max	2 V
Holding Current-Max	100 mA
JEDEC-95 Code	TO-247AC
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Leakage Current-Max	0.5 mA
Moisture Sensitivity Level	1
Non-Repetitive Pk On-state Cur	250 A
Number of Elements	1
Number of Terminals	3
On-state Current-Max	20000 A
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RMS On-state Current-Max	30 A
Repetitive Peak Off-state Leakage Current-Max	500 uA
Repetitive Peak Off-state Voltage	1600 V
Repetitive Peak Reverse Voltage	1600 V
Sub Category	Silicon Controlled Rectifiers
Surface Mount	NO
Terminal Finish	MATTE TIN OVER NICKEL
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Device Type	SCR
